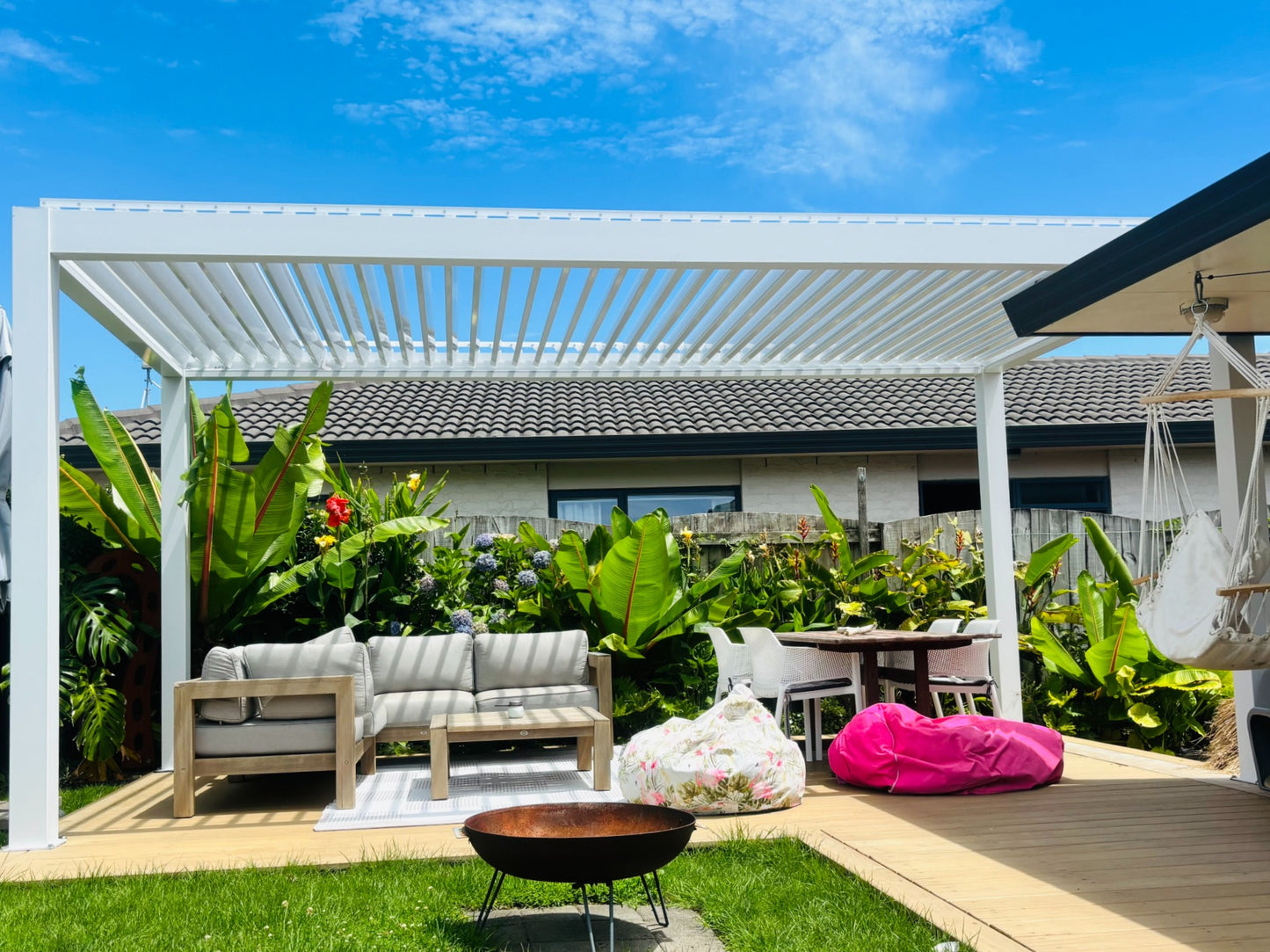

EvoLuxe Motorised Louvre Roof Pergola
EvoLuxe Motorised Louvre Roof Pergola
Couldn't load pickup availability

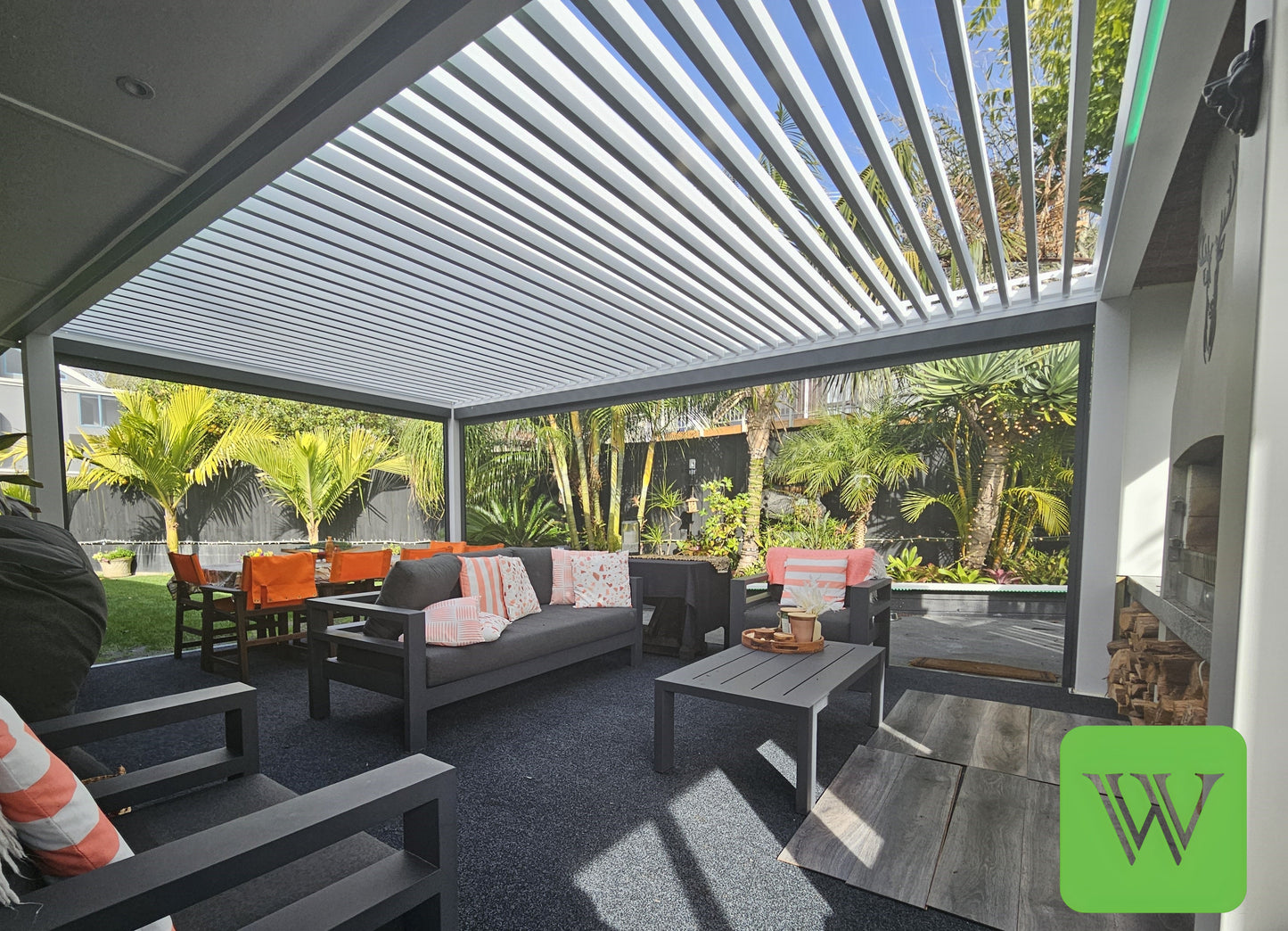

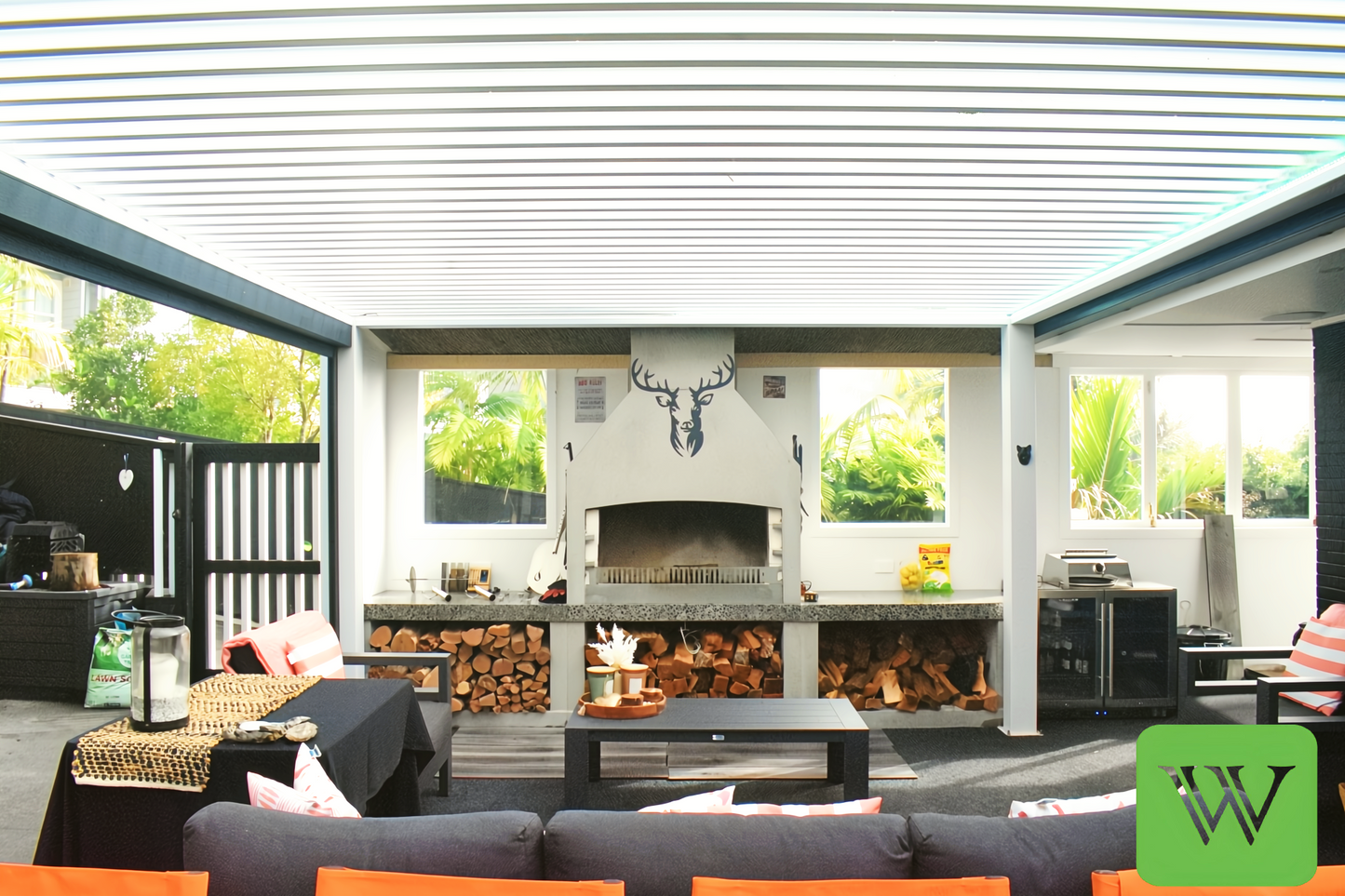

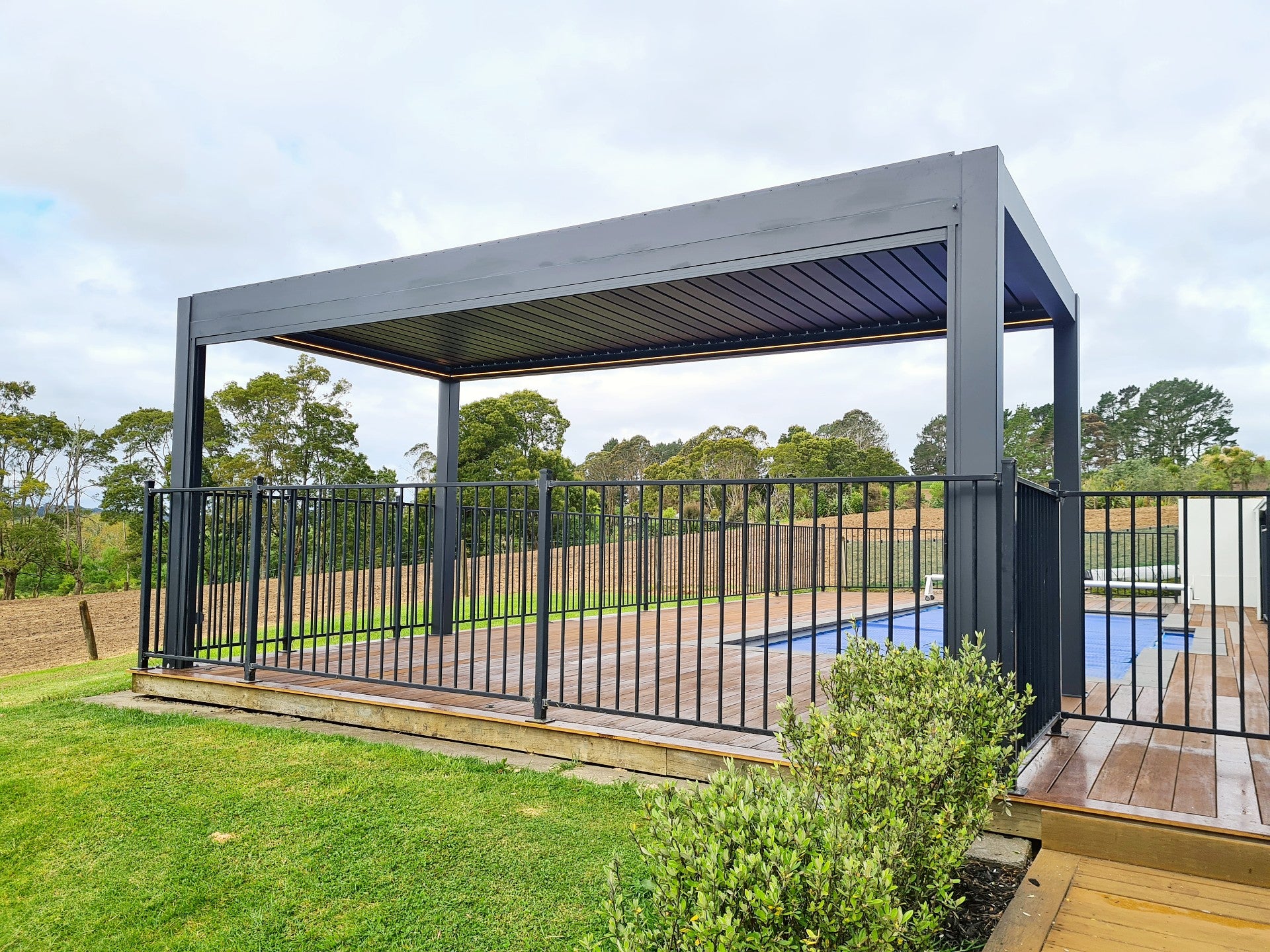

Transform your outdoor area into a stylish and functional living space with the EvoLuxe Motorised Louvre Pergola. Designed for modern New Zealand homes, the EvoLuxe provides effortless control over sunlight, shade, and airflow, allowing you to enjoy your outdoor space in comfort throughout the year.
Whether you are entertaining guests, creating an outdoor dining area, or simply relaxing with family, the EvoLuxe combines contemporary design with practical functionality. With its sleek aluminium structure, double-layer louvre blades, integrated gutter system, and hidden motor operation, this pergola delivers both style and performance.
The EvoLuxe Louvre Pergola includes:
✓ Motorised louvre roof operation
✓ Hidden motor system with wall remote control

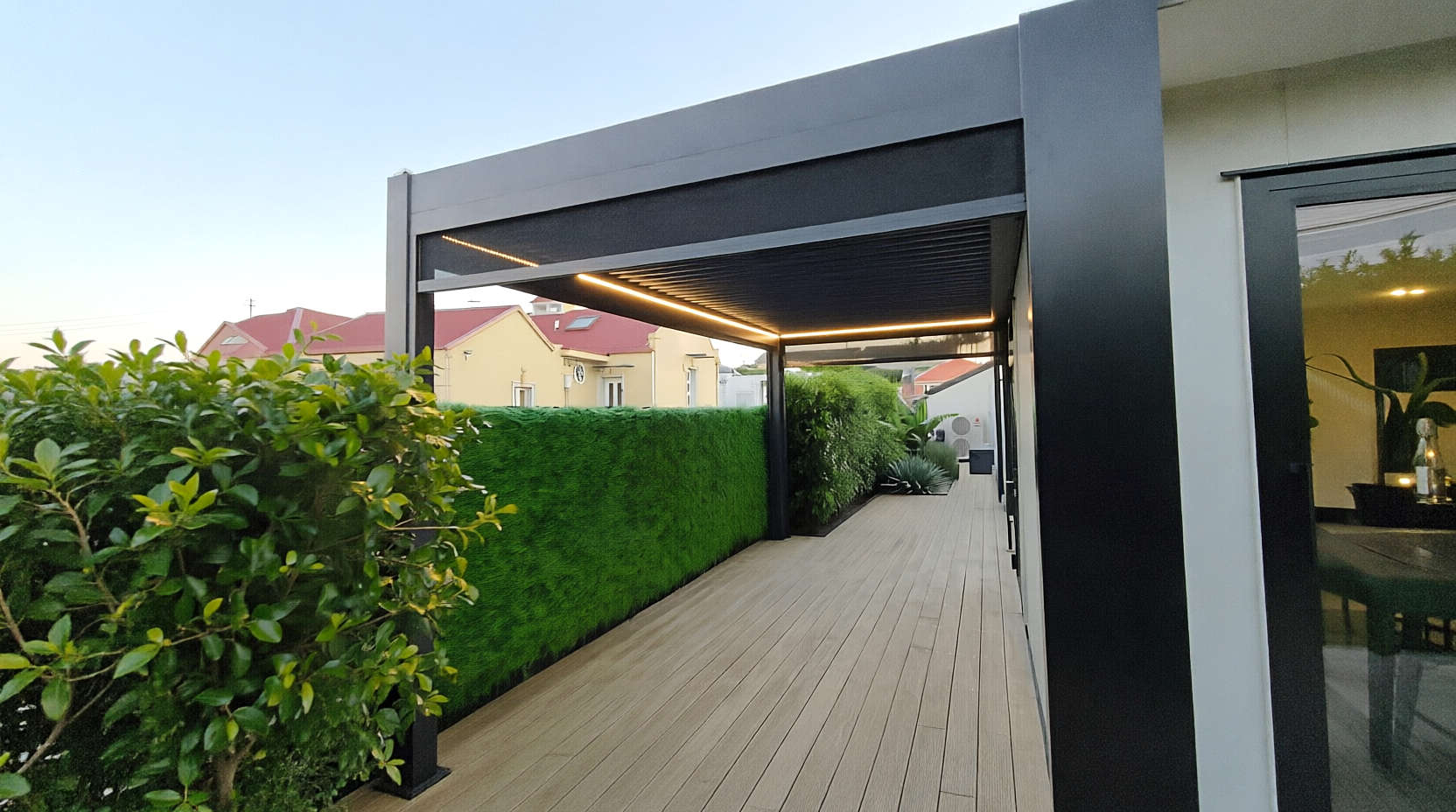

✓ Waterproof LED lighting integrated around the beams

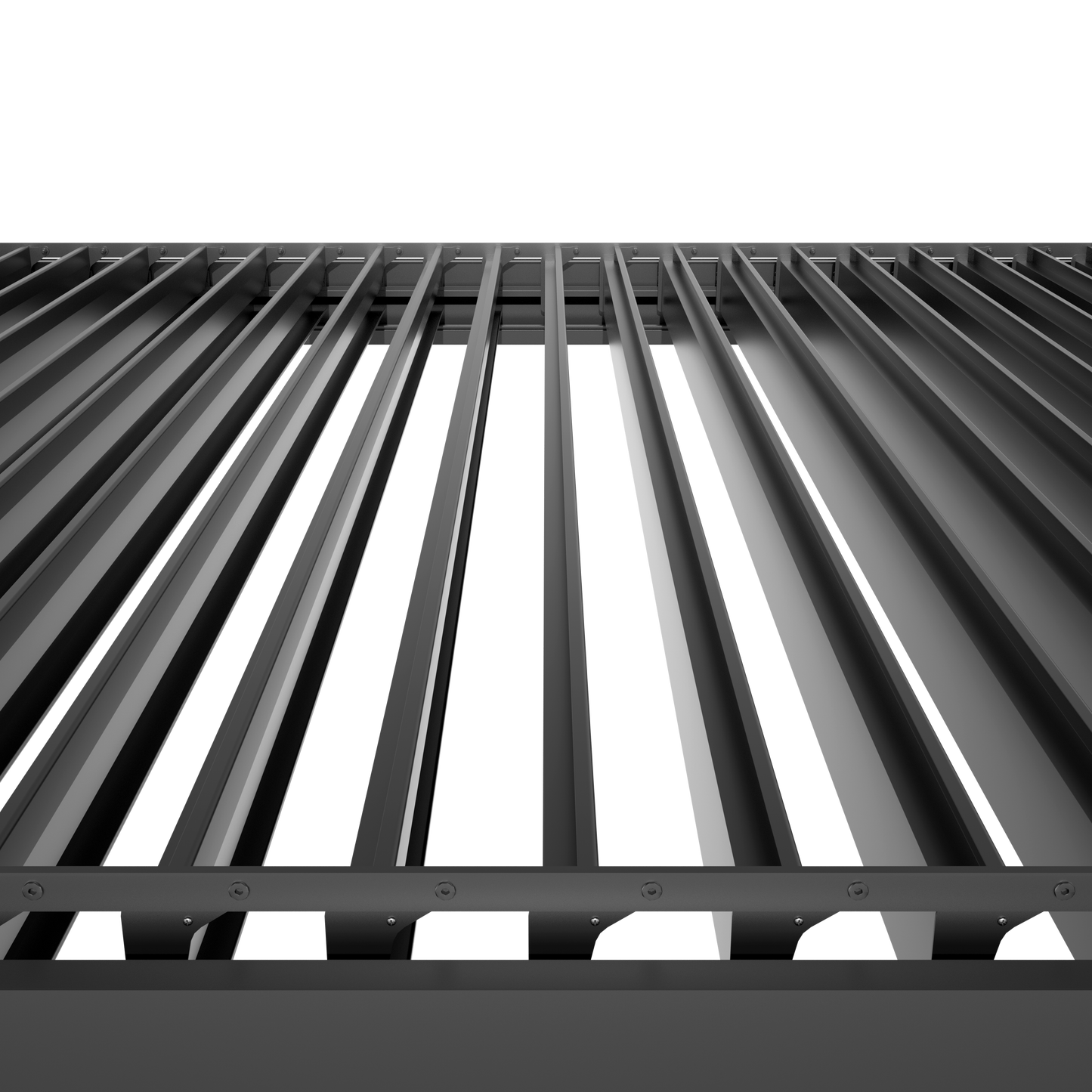

✓ Double-layer aluminium louvre blades

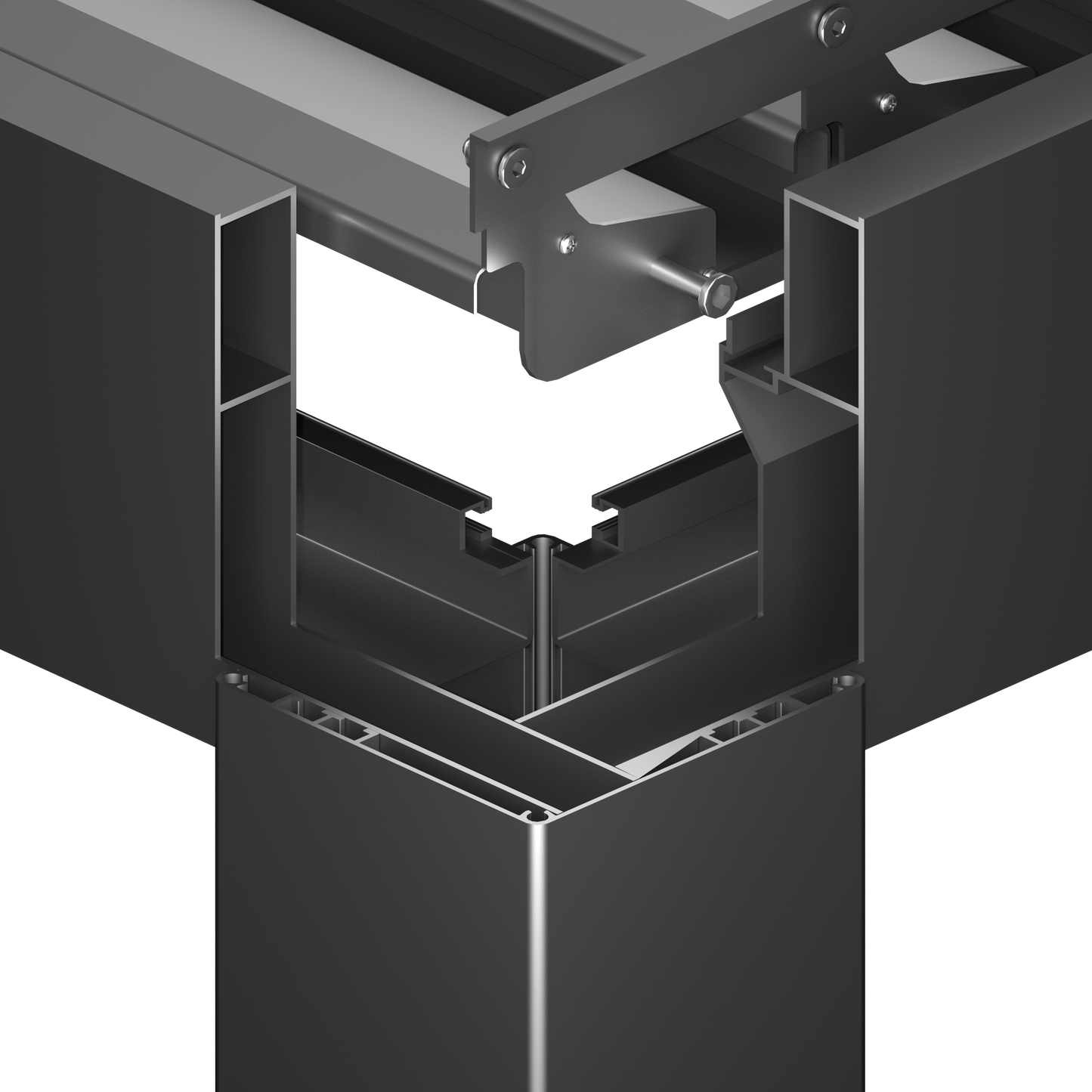

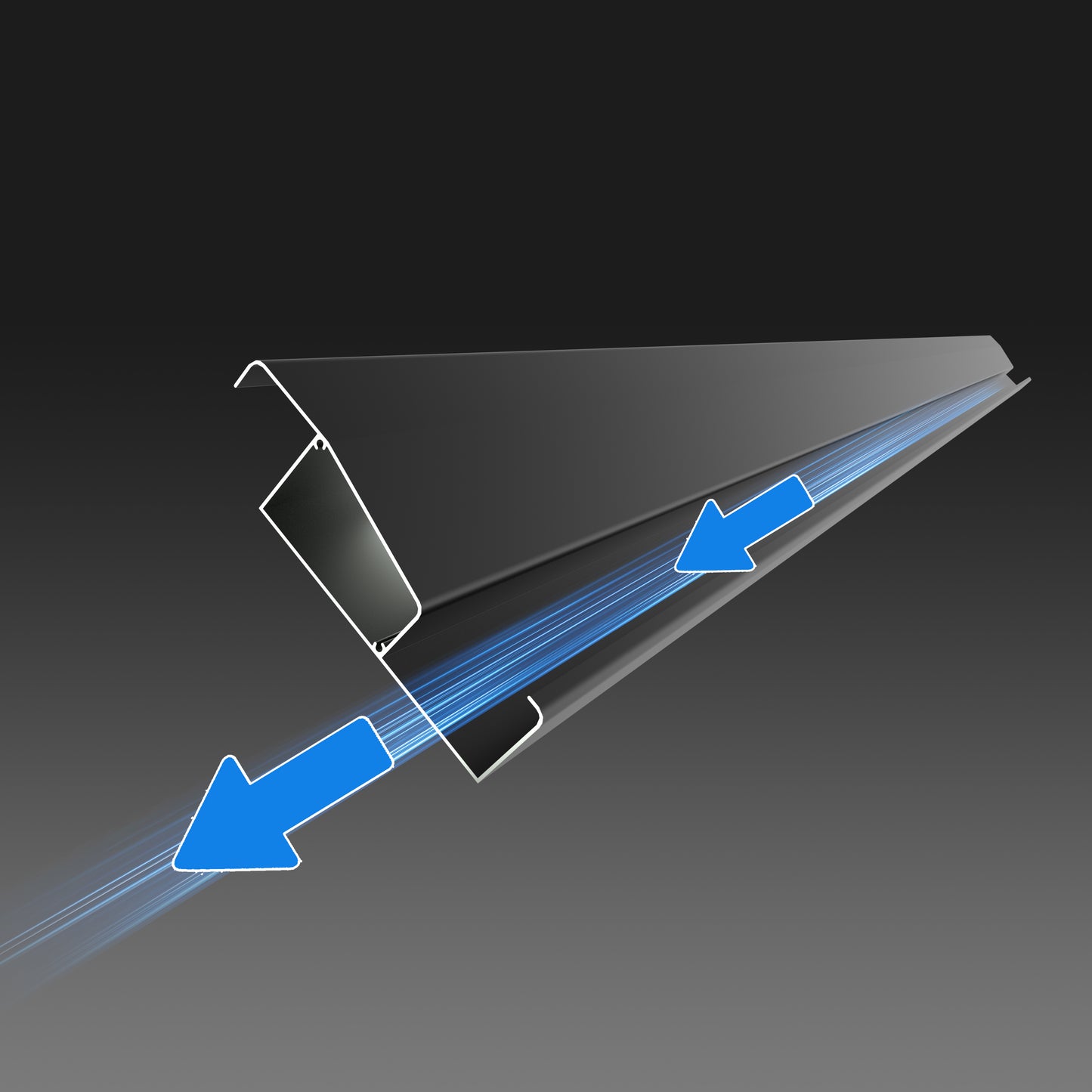

✓ Built-in gutter system for effective water management
✓ Strong aluminium alloy 6063 T5 construction

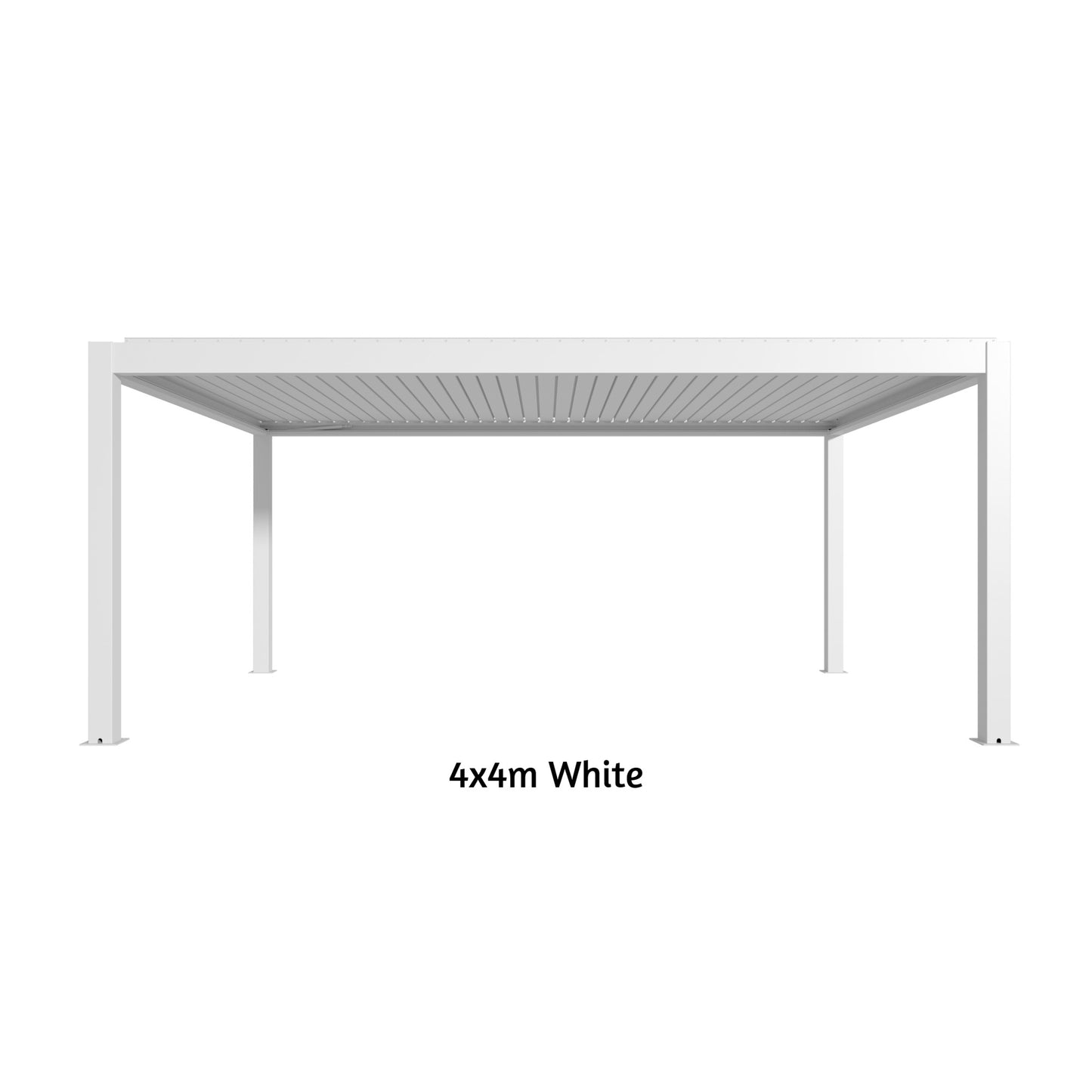

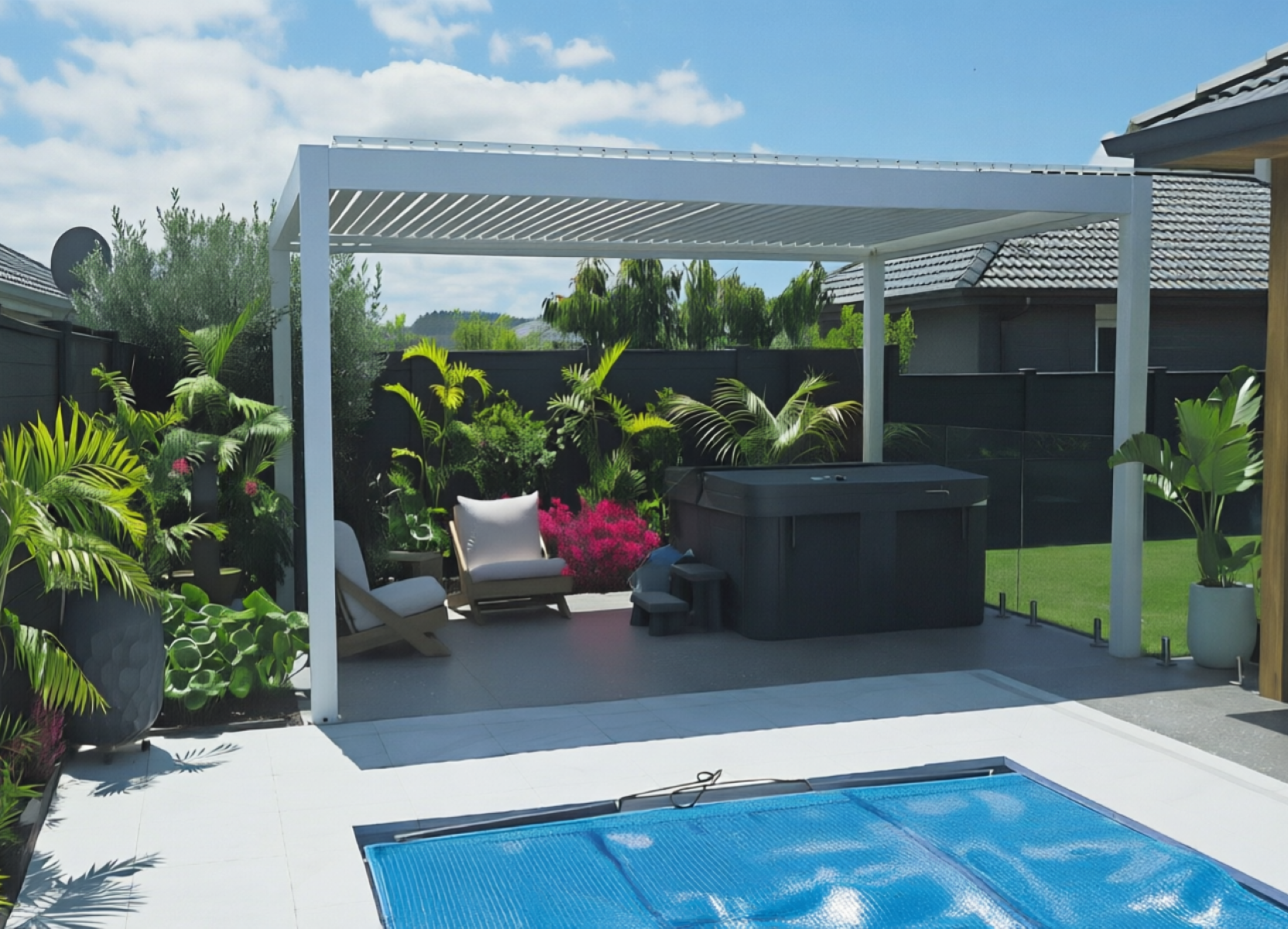

✓ Available in White (RAL 9016) and Dark Grey (RAL 7016)

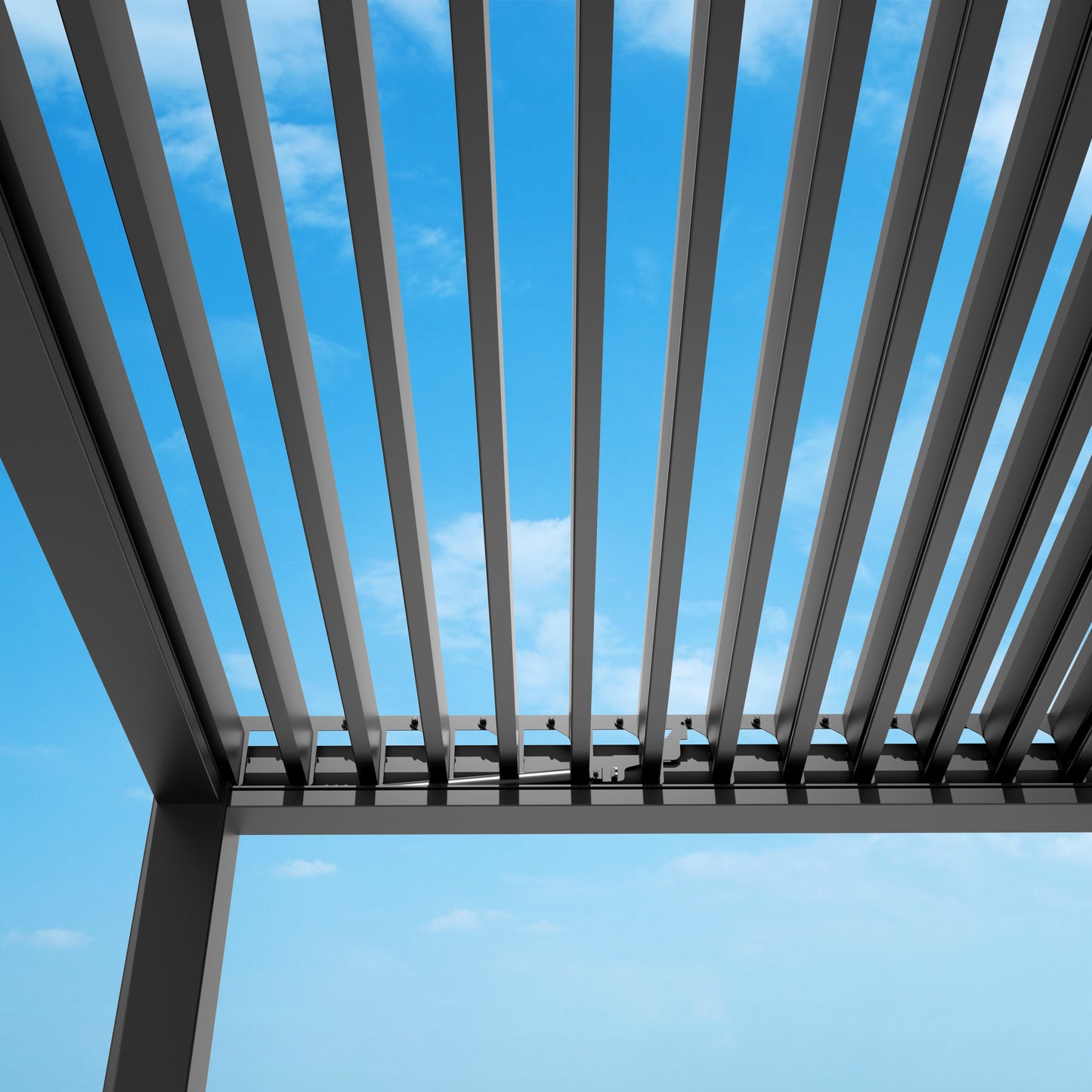

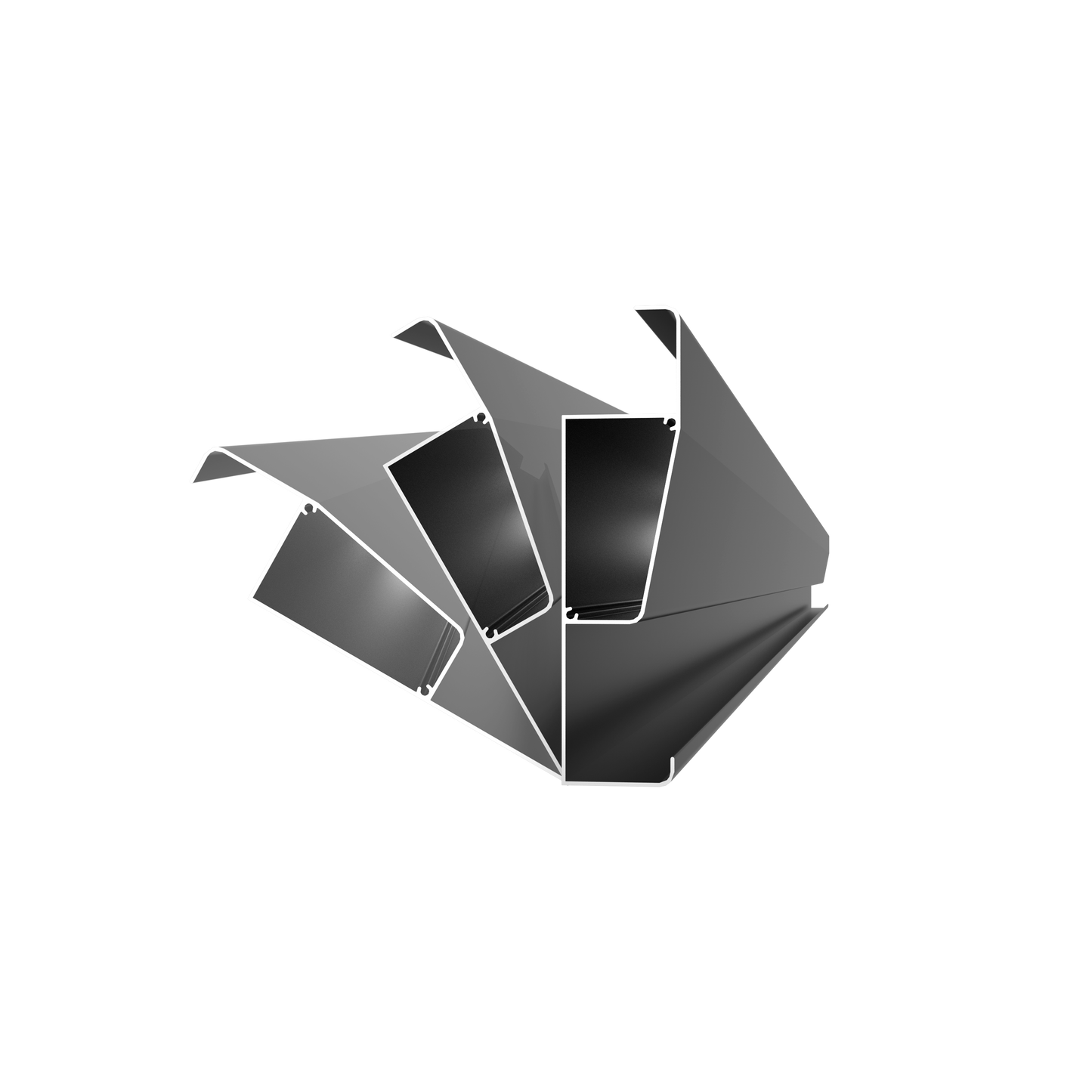

The motorised louvre system allows you to adjust the roof angle up to 90°, giving you control over sunlight, shade, and ventilation at the touch of a button.
Special Order Options
For customers requiring a more tailored solution, the EvoLuxe is also available by special order with additional options including:
- Custom sizing to suit your outdoor space
- Manual louvre operation (without LED lighting)
Special order options are made to suit specific requirements and may have different lead times. Please contact our team to discuss your project.

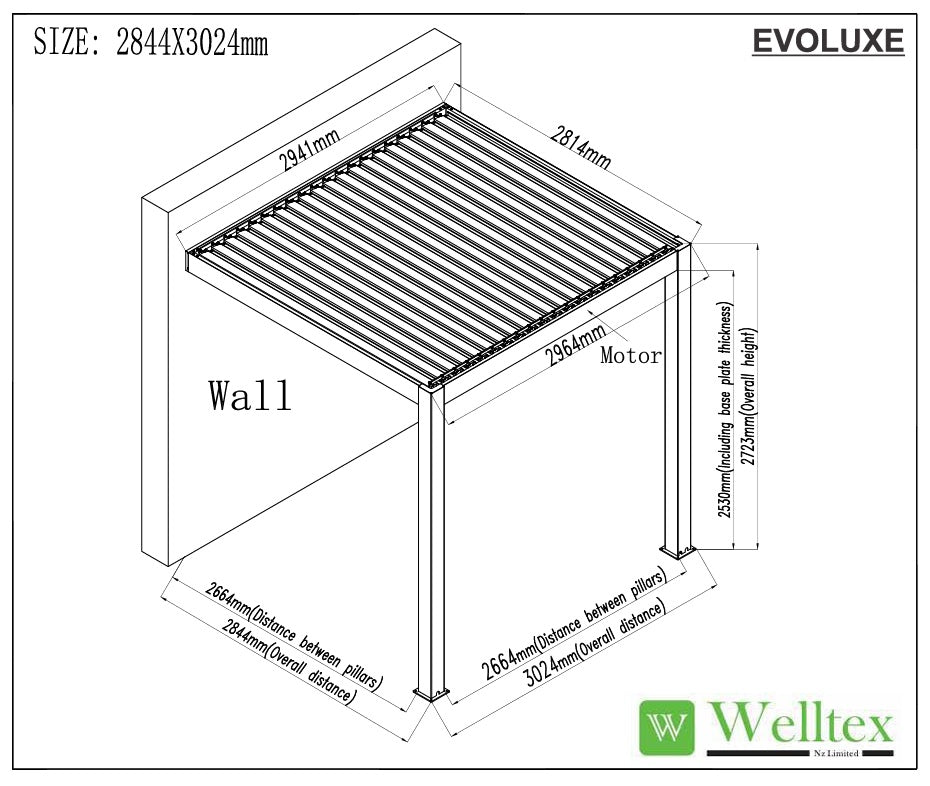

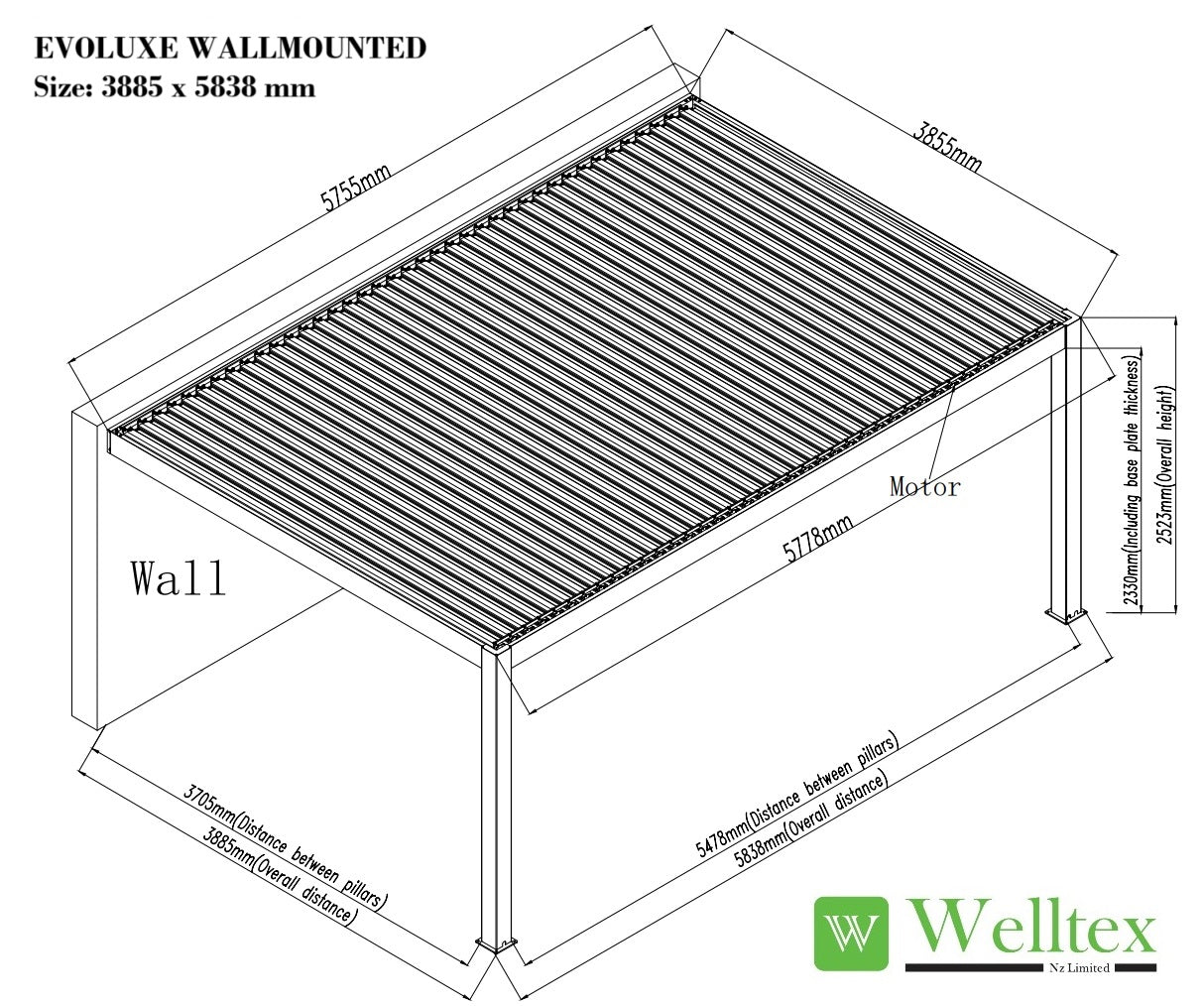

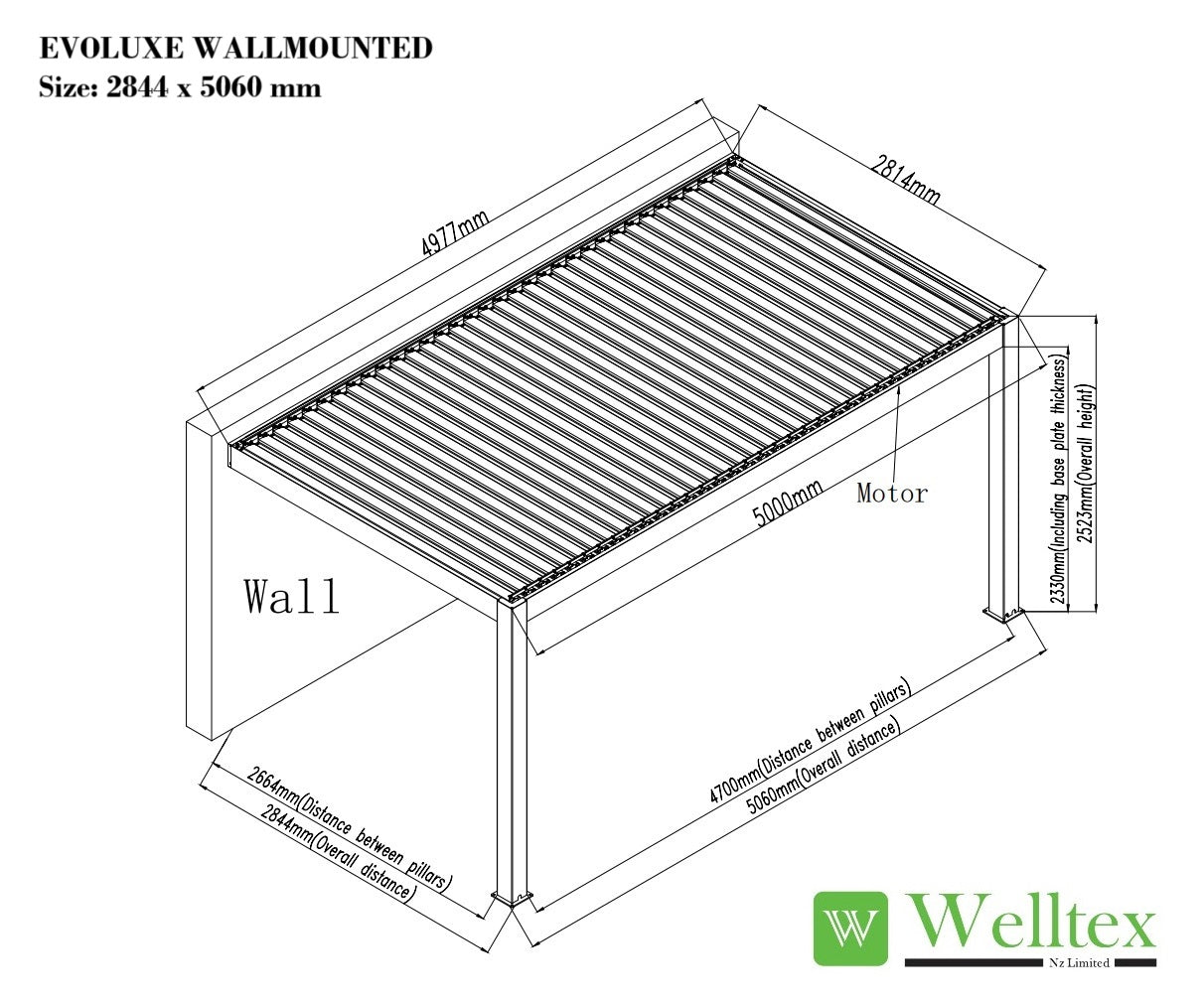

Specifications
| Feature | Specification |
|---|---|
| Material | Aluminium Alloy 6063 T5 |
| Posts | 150 × 150 × 2.0mm |
| Louvre Blades | 159.9 × 38 × 1.3mm (Double Layer) |

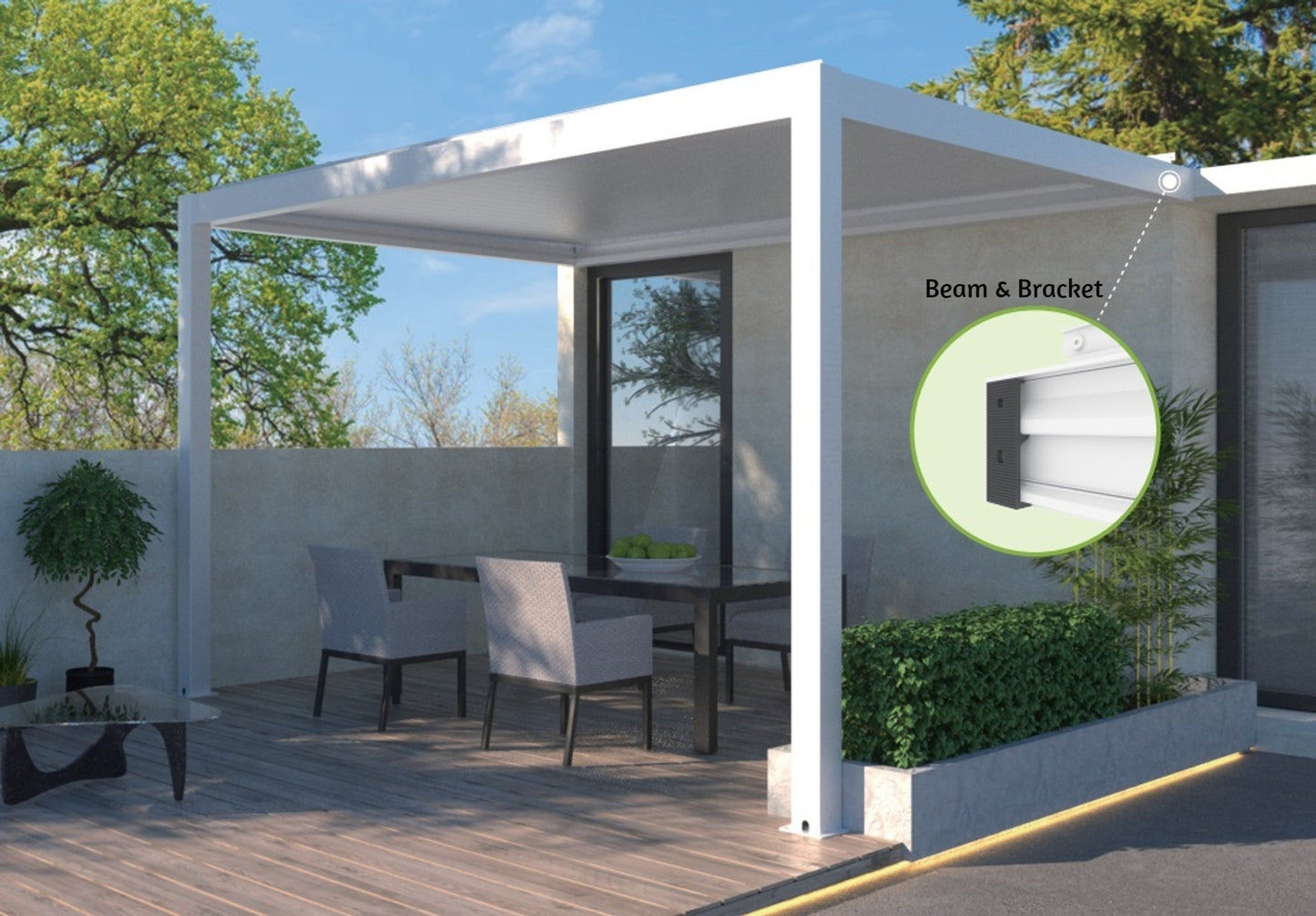

| Beams with Gutter | 190 × 124.28 × 2.5mm |
| Height | 270cm + 8cm clearance for louvre rotation |

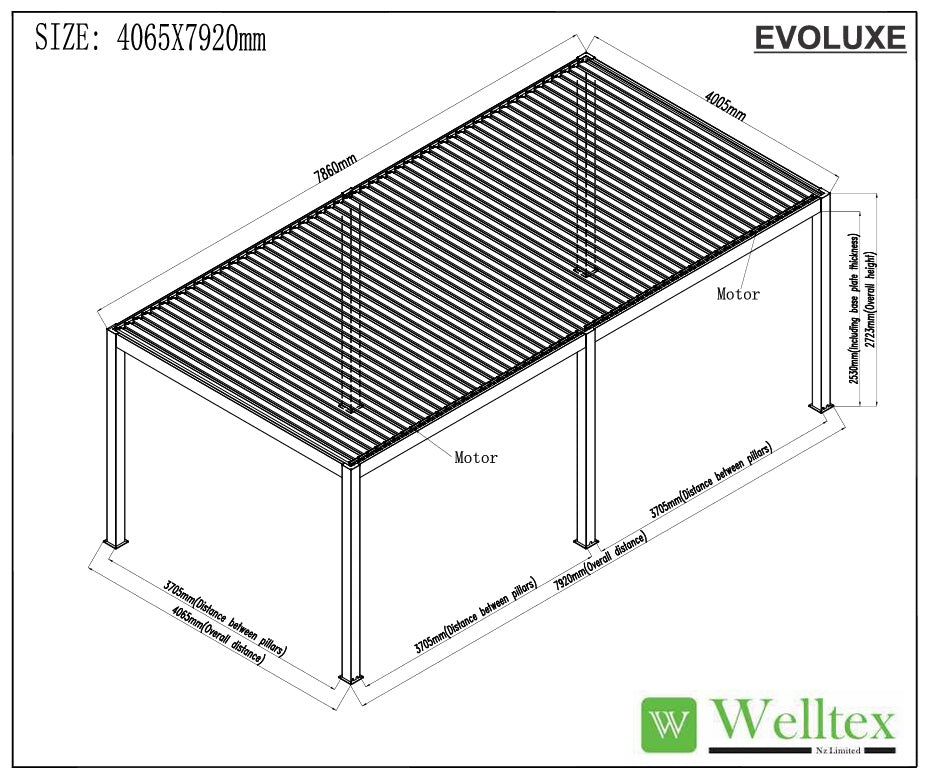

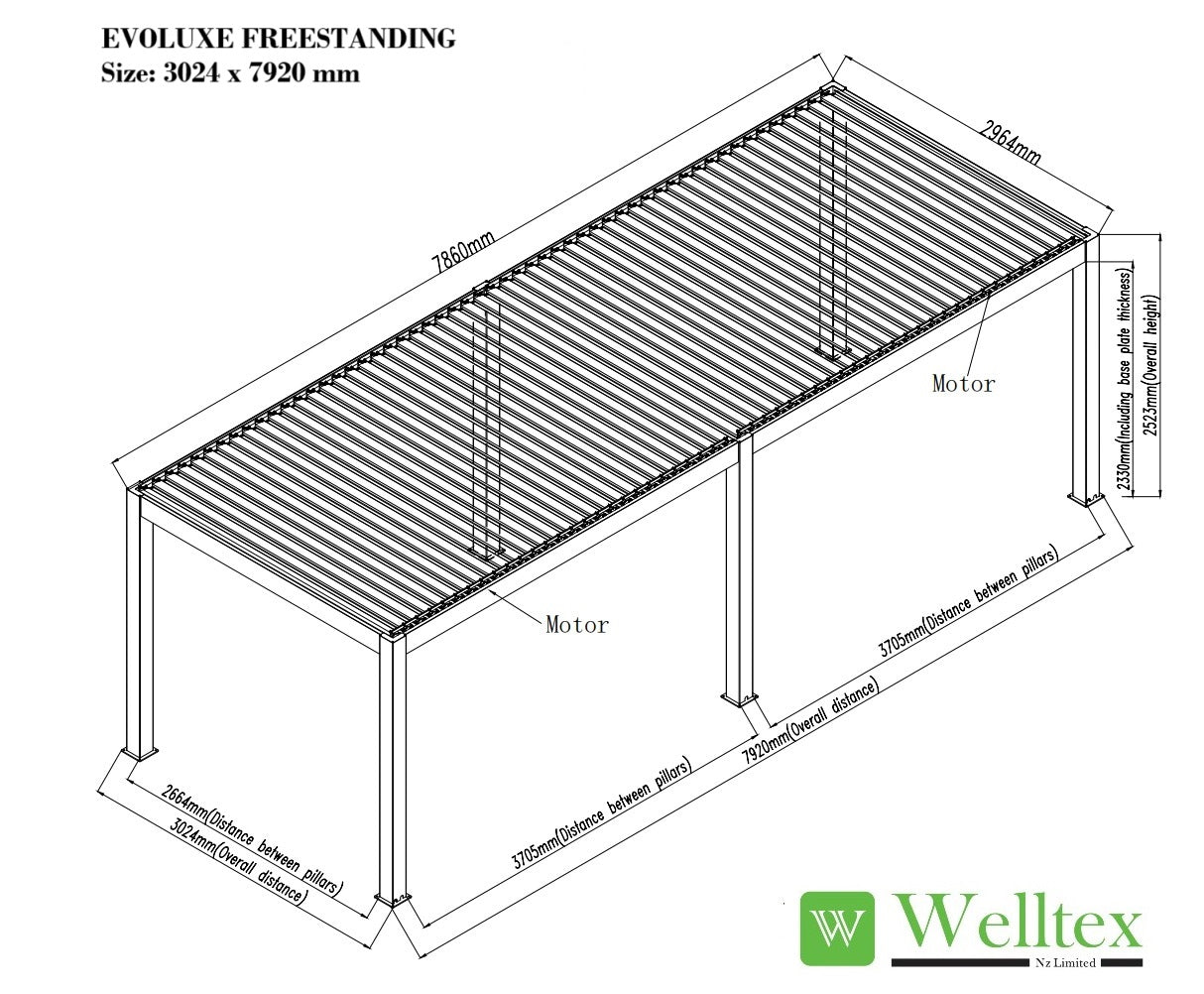

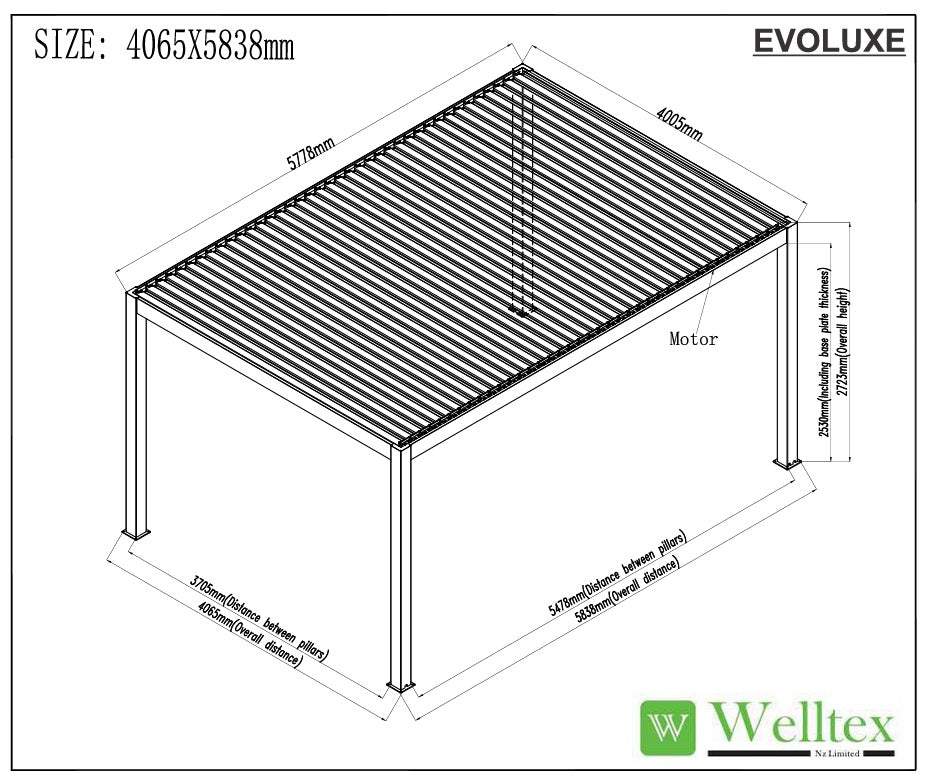

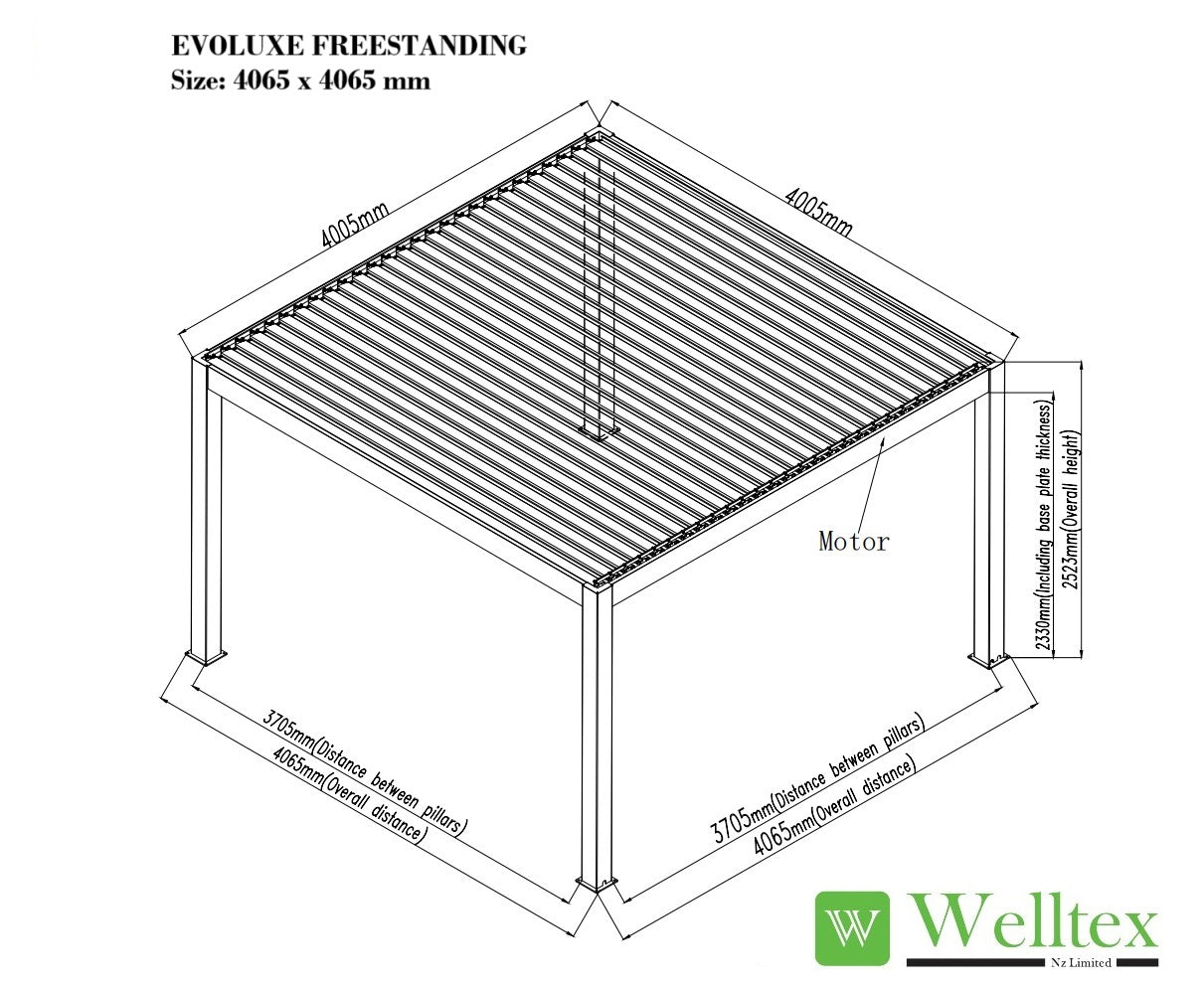

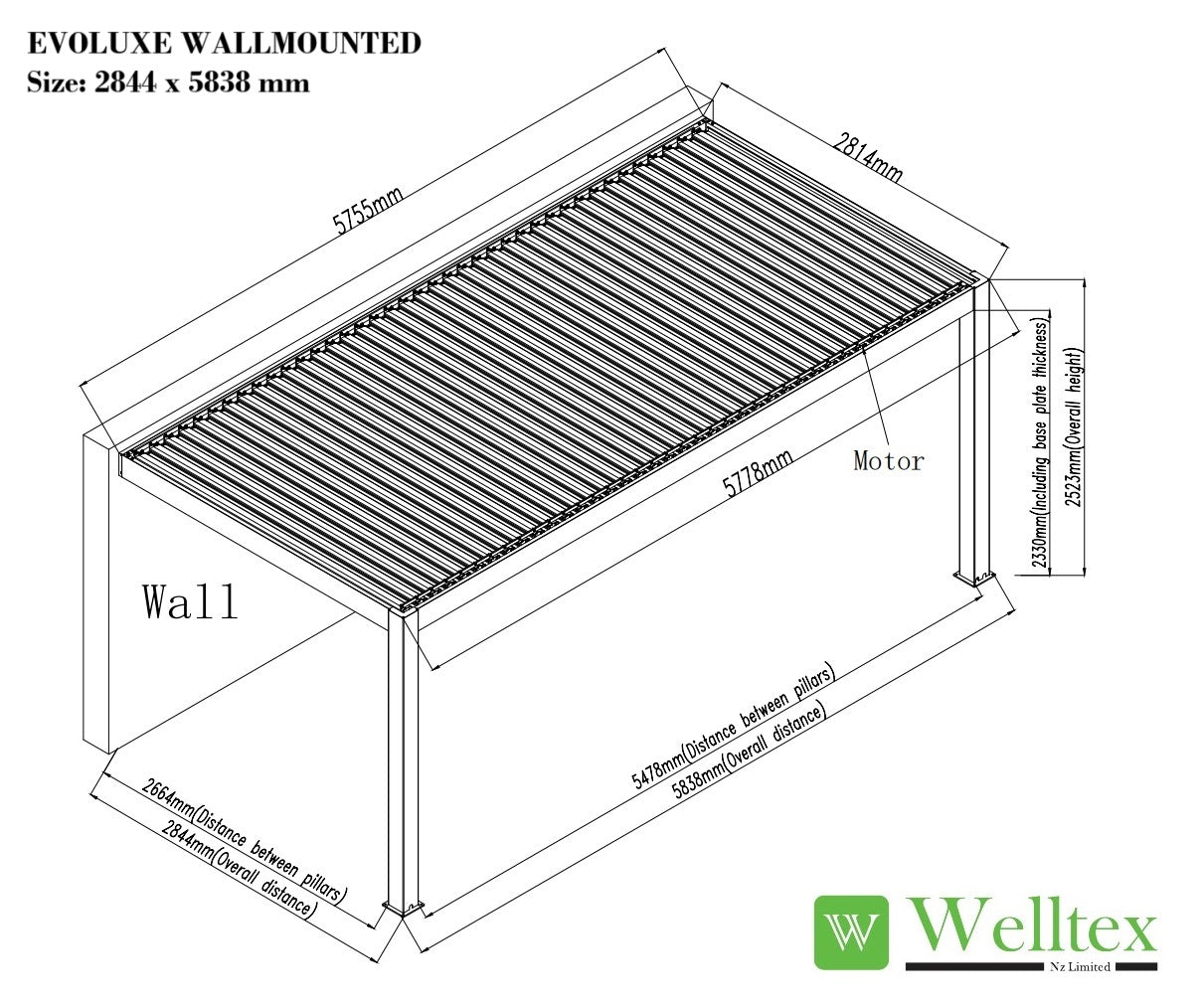

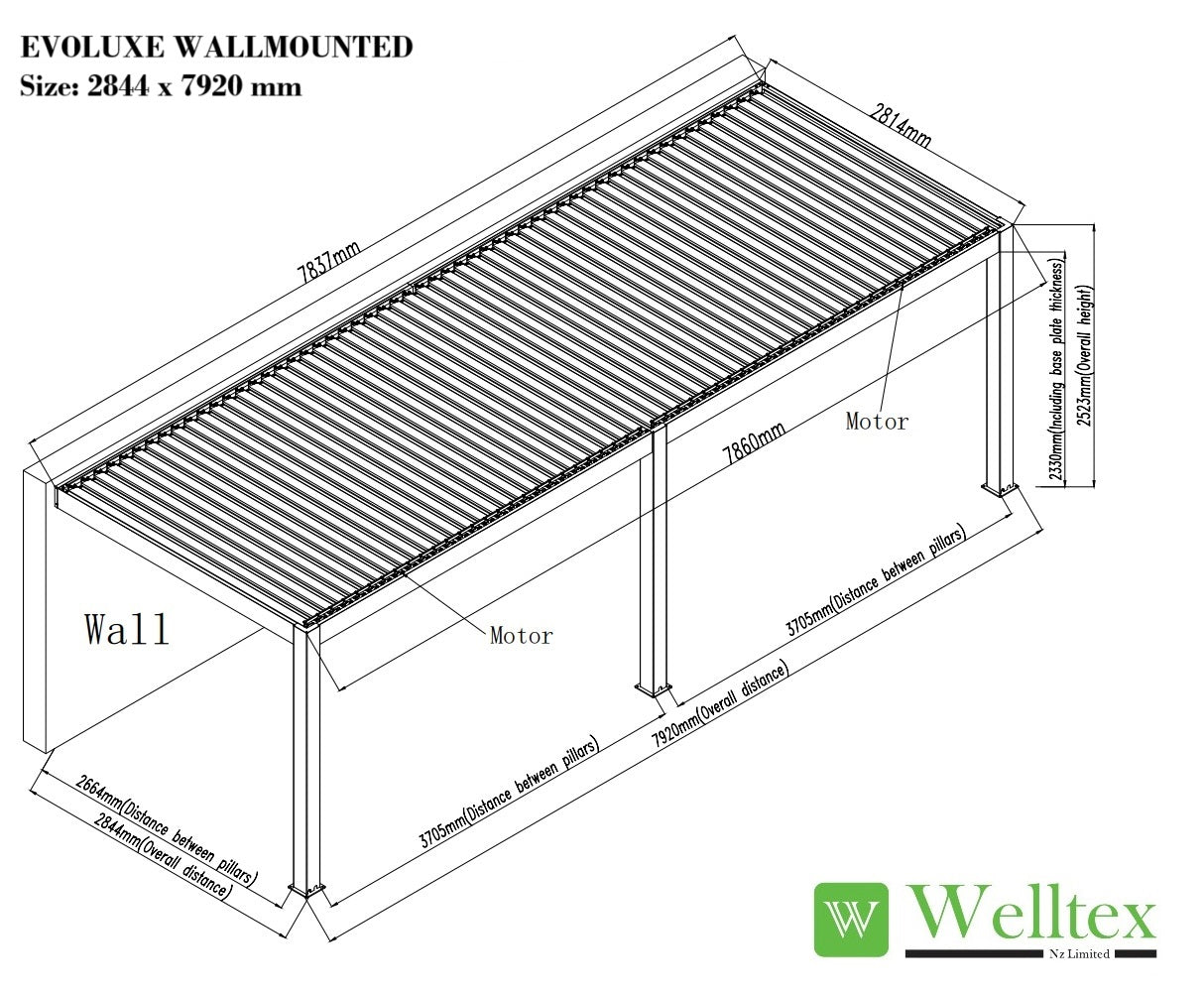

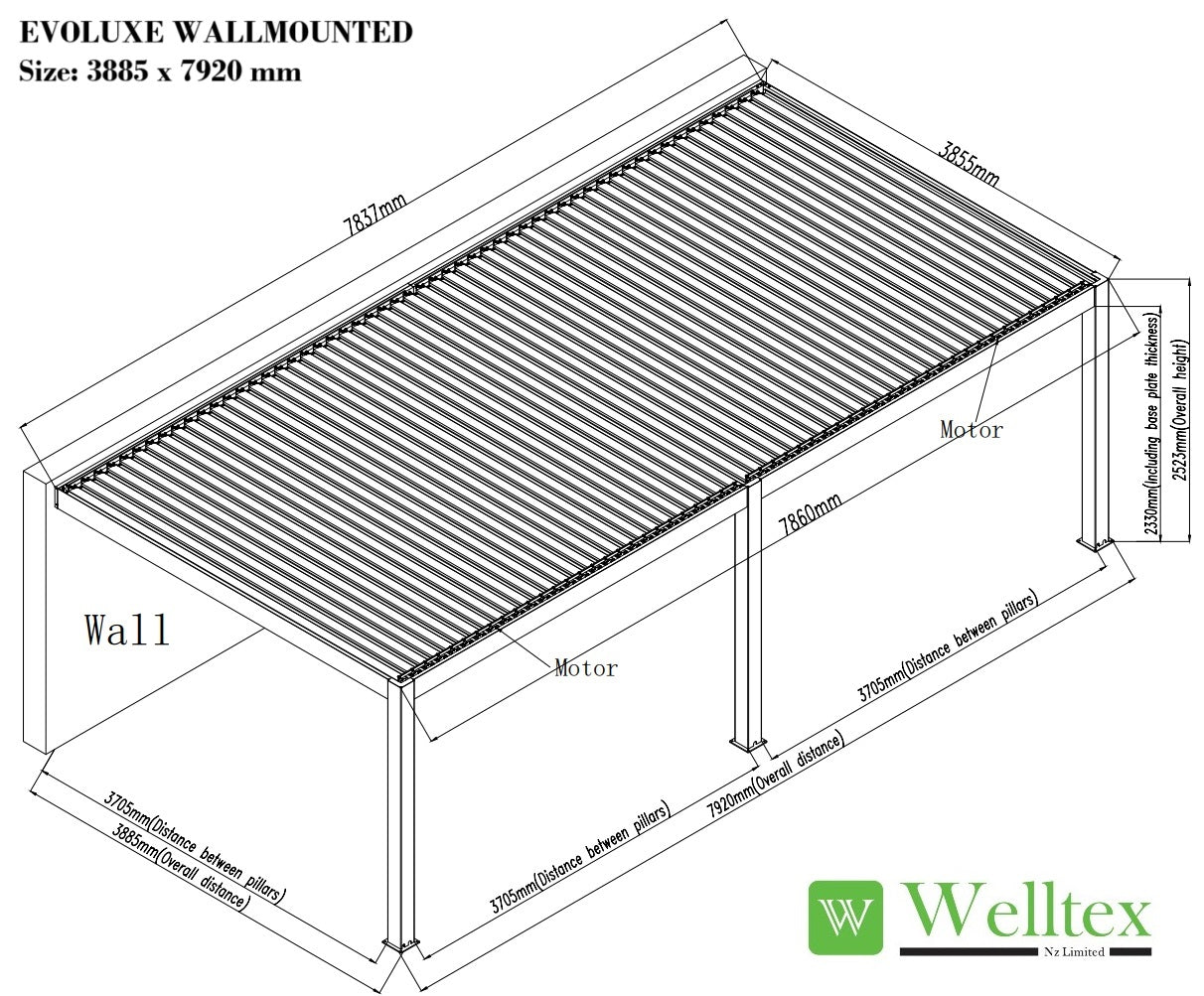

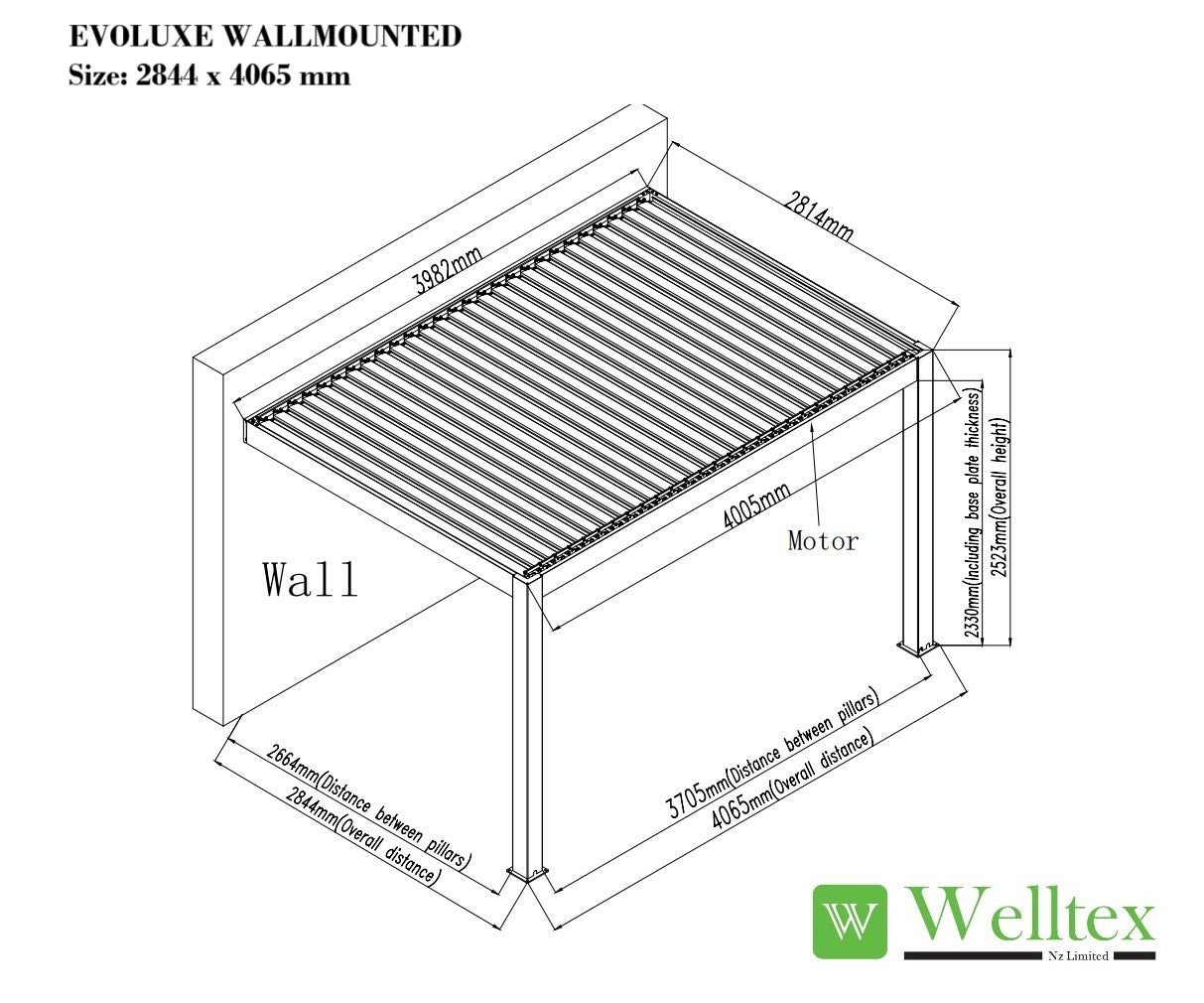

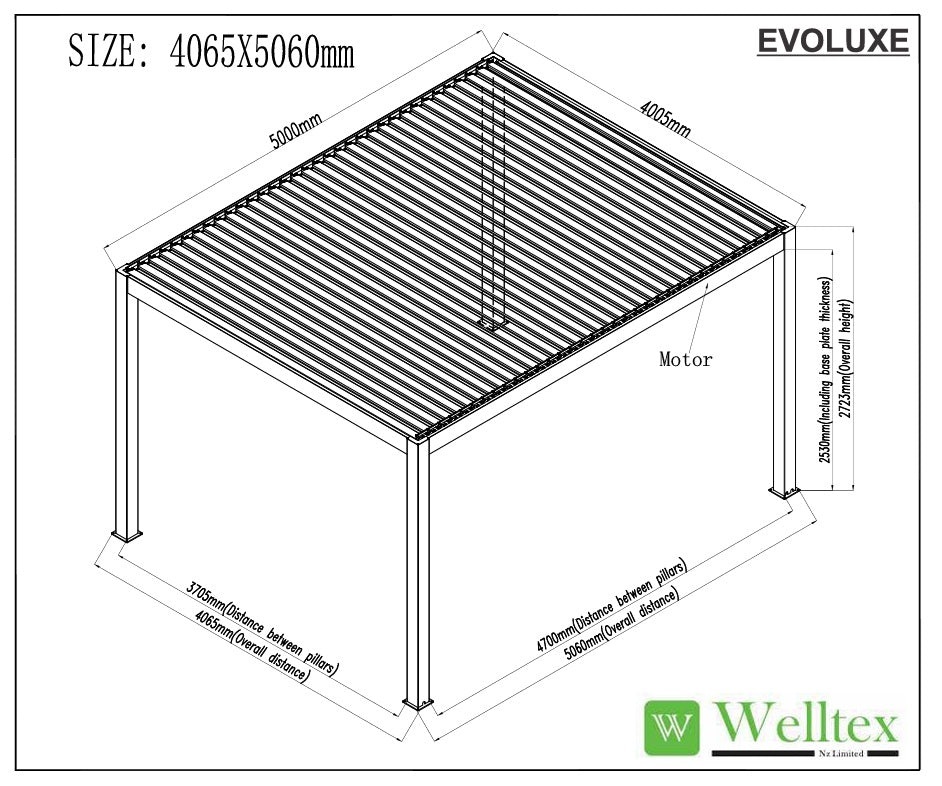

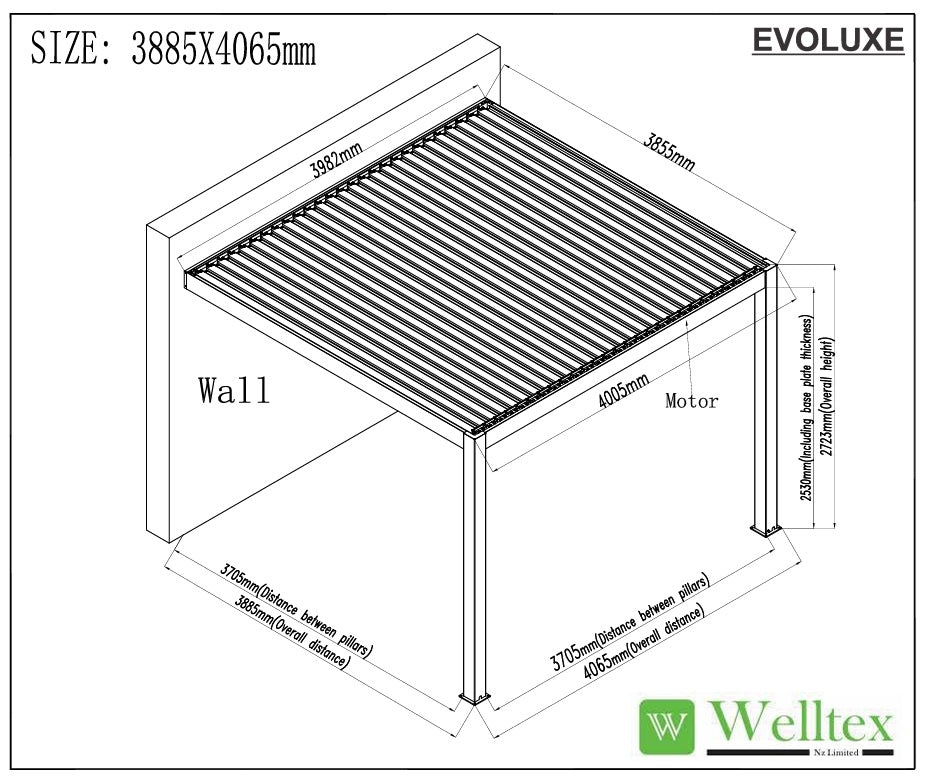

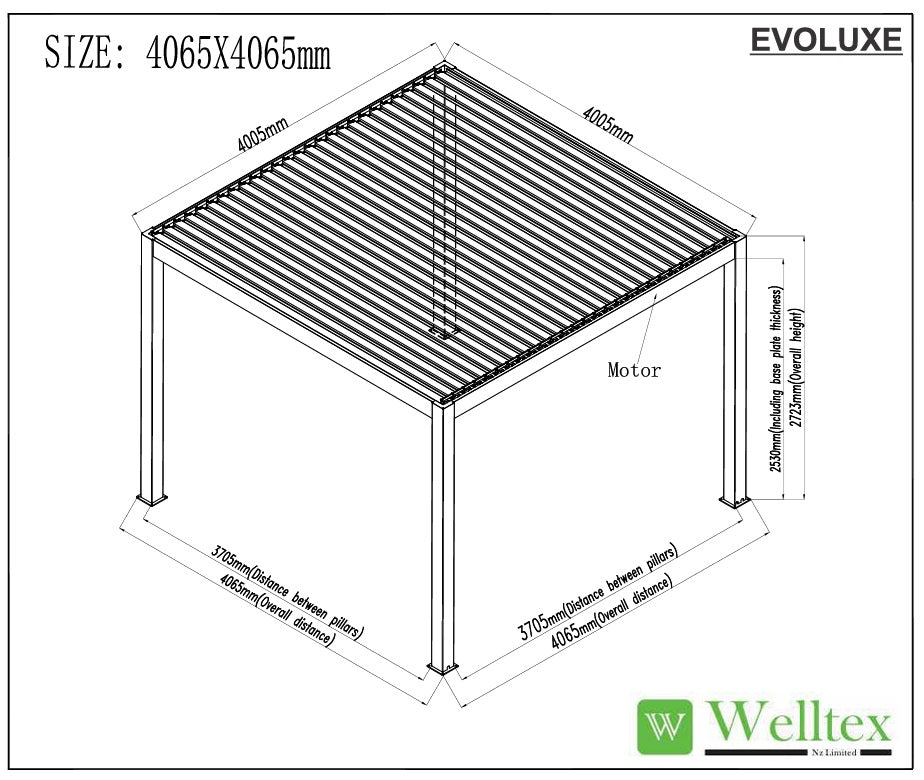

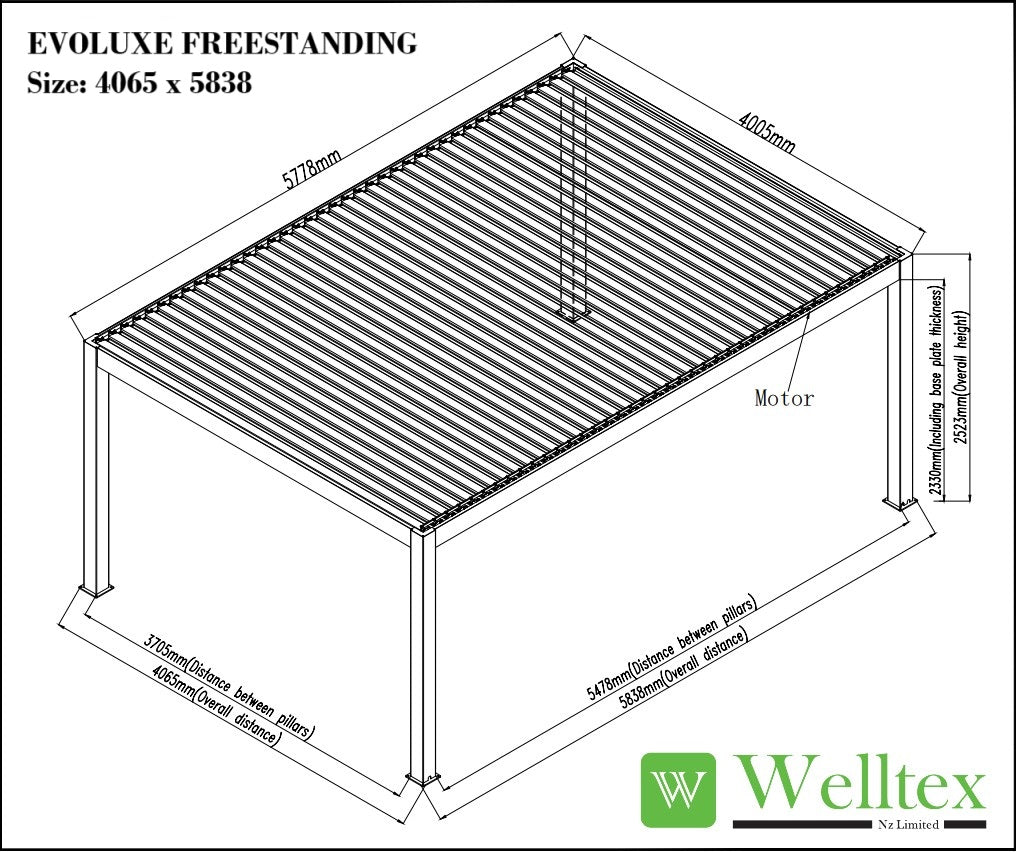

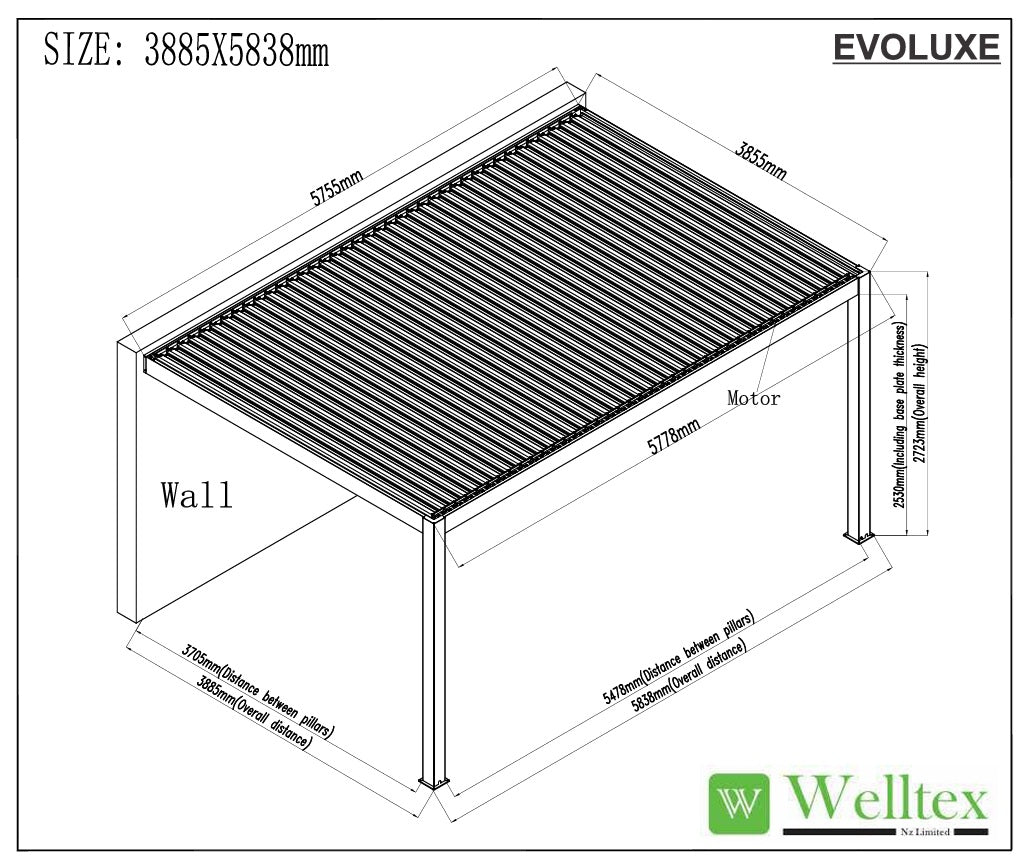

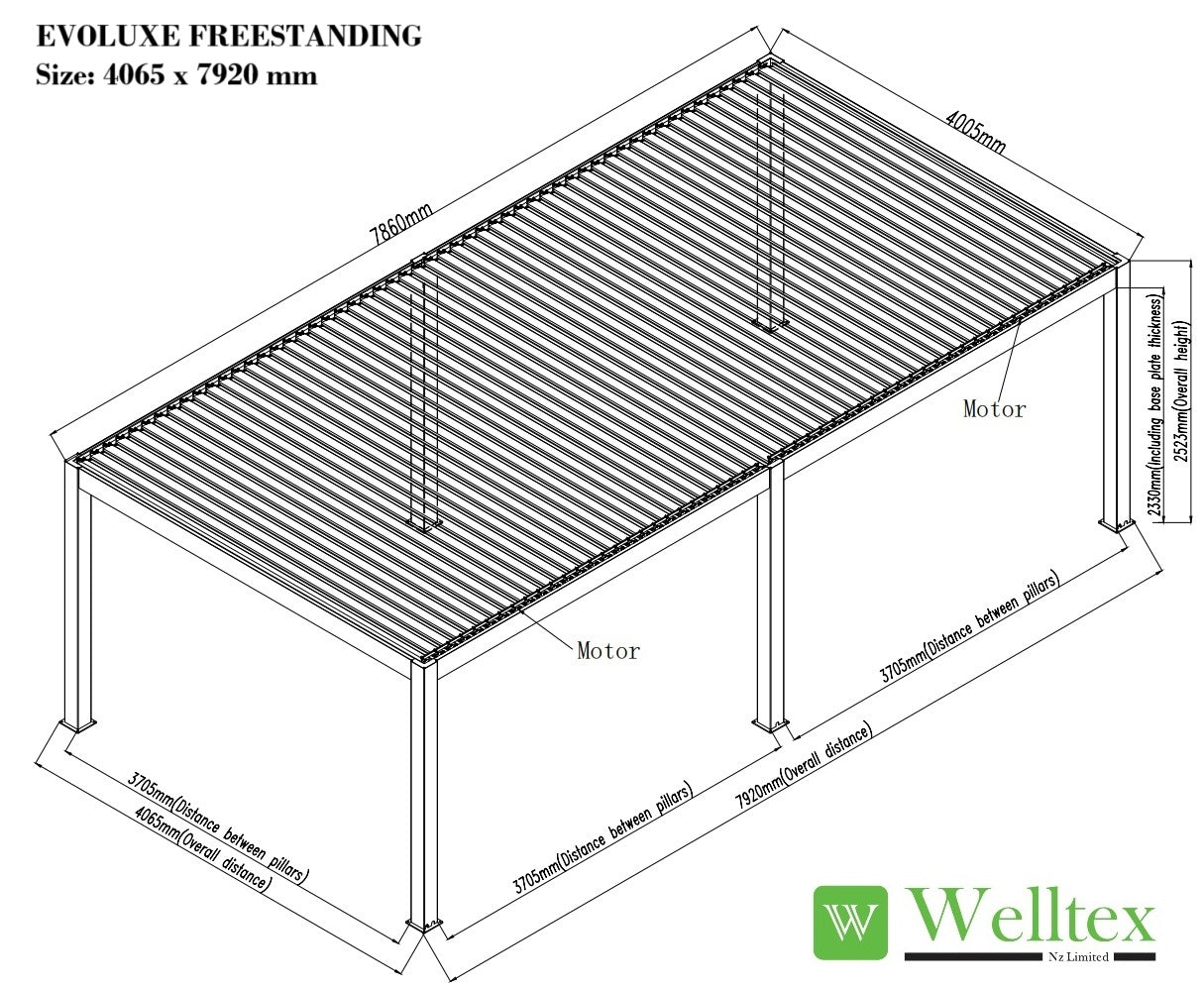

| Structure | 2–4 posts; single bay up to 6m × 4m |
| Louvre Rotation | 90° |
| Motor & Control | Hidden motor + wall remote |

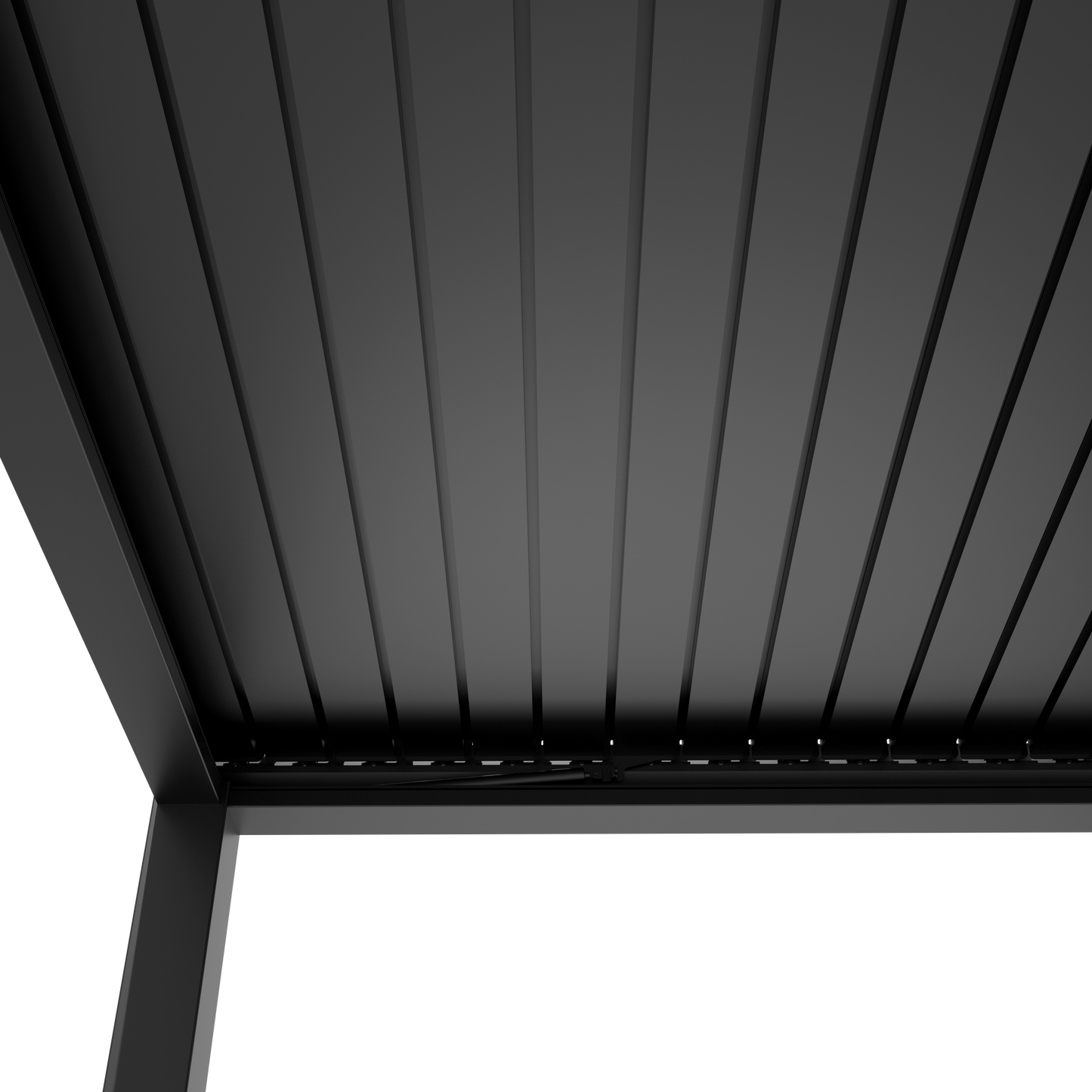

| Lighting | Waterproof LED lighting around beams (standard model) |

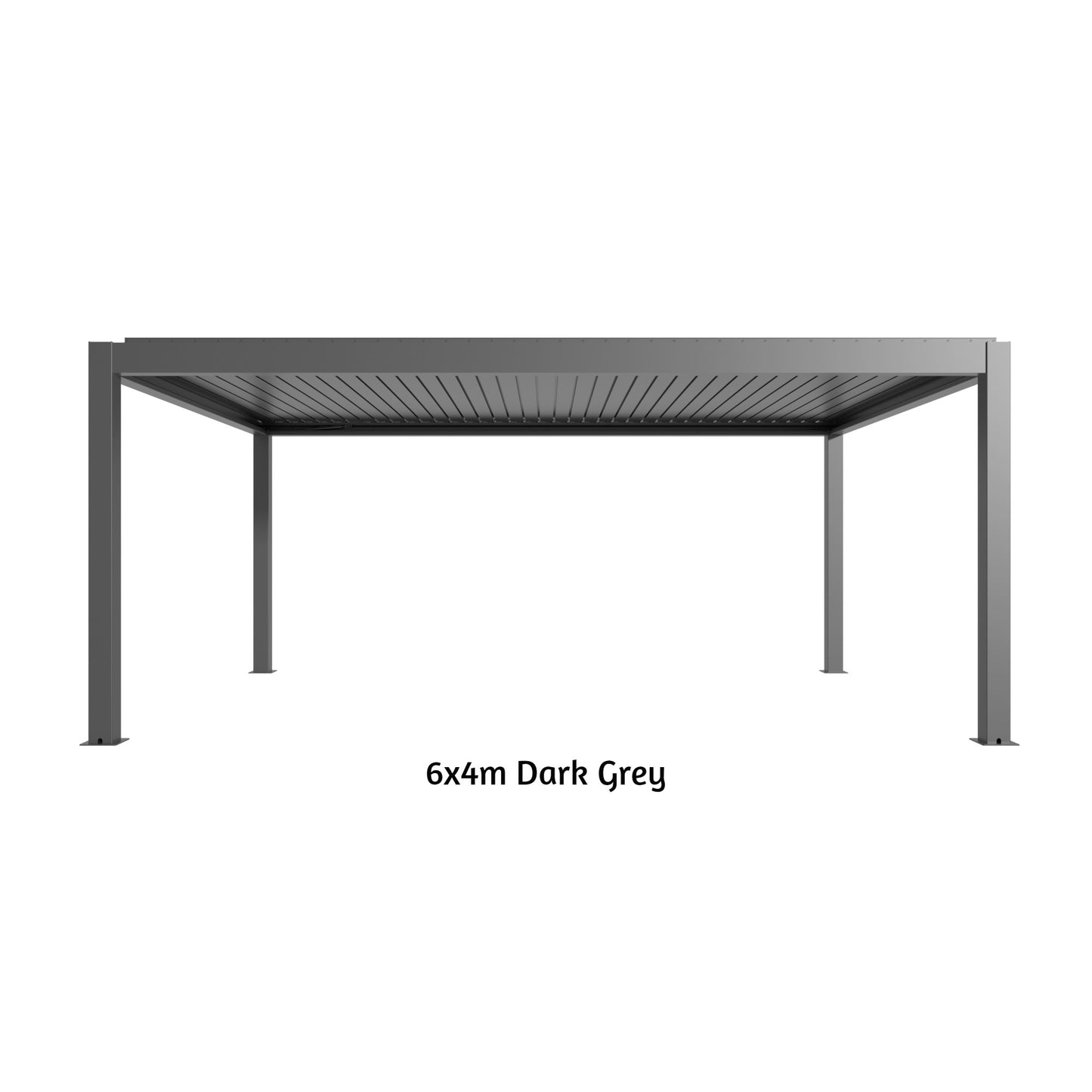

| Colour Options | White (RAL 9016), Dark Grey (RAL 7016) |
| Wind Resistance | Up to 120km/h |
| Motor Wattage | AC 220V |
| LED Voltage | DC 24V |
| Assembly | DIY-friendly kitset with installation manual included |
Warranty
- Structural Warranty: 10 years
- Powder Coating Warranty: 3 years
- Motor Warranty: 2 years
- LED Lighting Warranty: 2 years
Warranty Exclusions
The EvoLuxe Louvre Pergola kitset is designed as a non-permanent outdoor structure. Warranty does not cover changes, fading, deterioration, or damage caused by environmental conditions including heavy rain, strong winds, heat from BBQs or outdoor heaters.
Warranty does not cover damage caused by misuse, accidents, negligence, unauthorised alterations, or failure to follow installation instructions.
The warranty applies to domestic use only and excludes commercial applications.
Installation Requirements
Professional installation is recommended to ensure correct assembly and operation.
The pergola must be installed on a suitable and level substrate, including:
- Concrete footing with a minimum depth of 100mm, or
- A suitable structural timber deck
For safety and warranty purposes, no alterations or modifications should be made to the pergola system.
