Wireless Rain Sensors

Wireless rain sensors are a great option to add on to the pergola for optimal protection against rain. The Sensor is wireless and is powered with a 9V battery.

It is very easy to install and program with our motorised pergolas. One rain sensor can control multiple motors simultaneously. As soon as the water touches the sensor, a RF signal is sent to the motor which will automatically close the louvre blades if they are open.

Available in two models: Standard Wireless Rain Sensor and Solar Wireless Rain Sensor

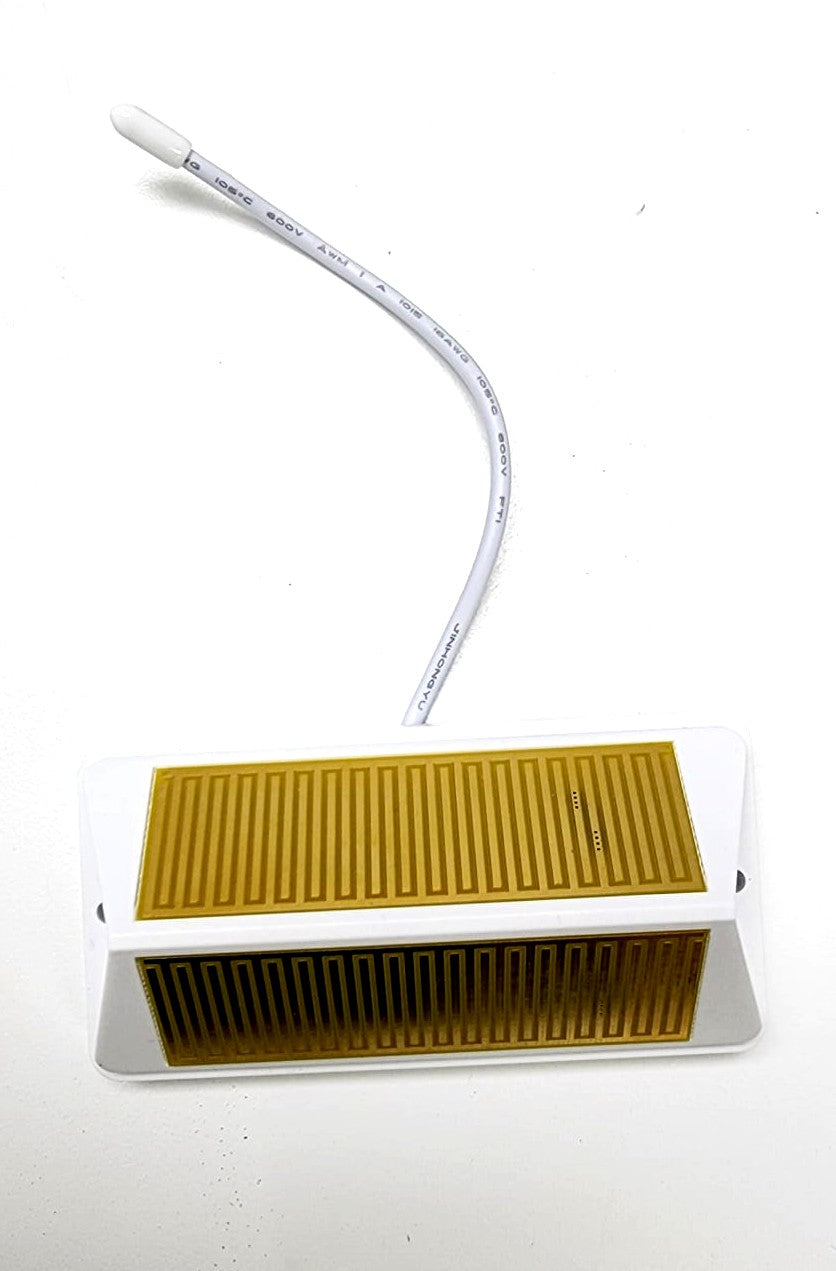

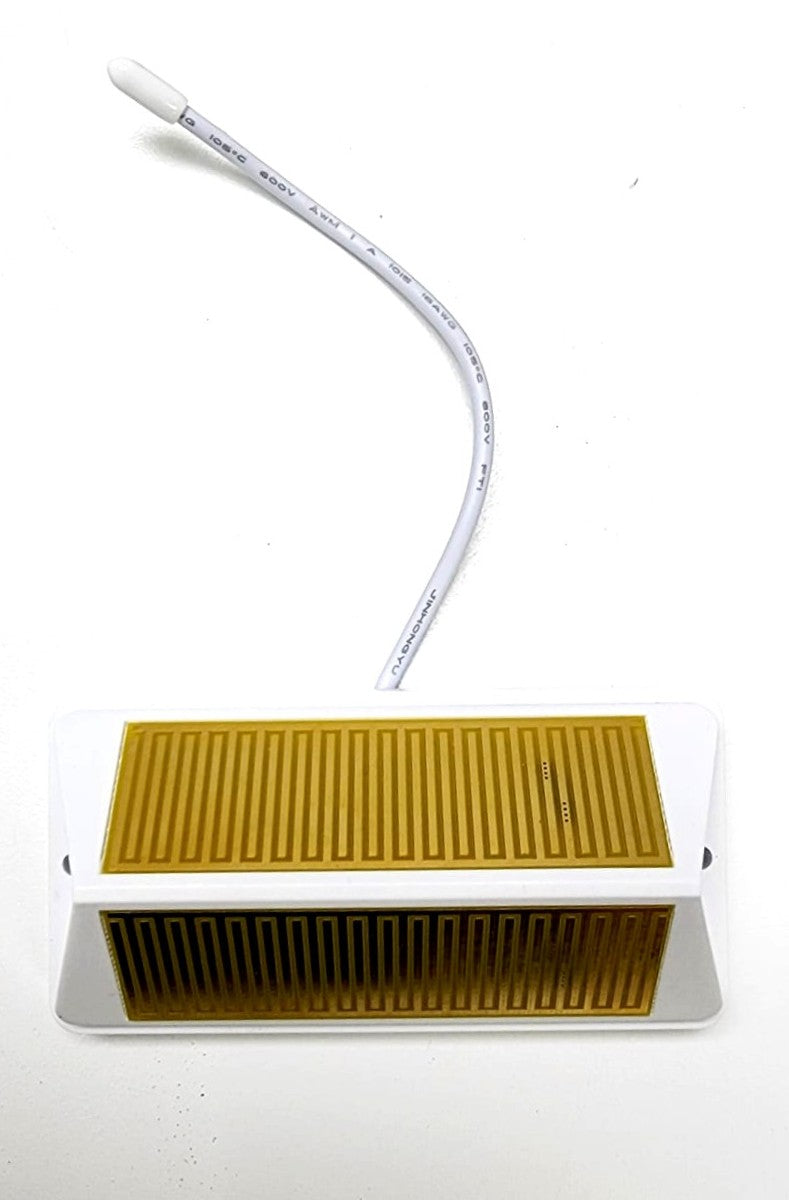

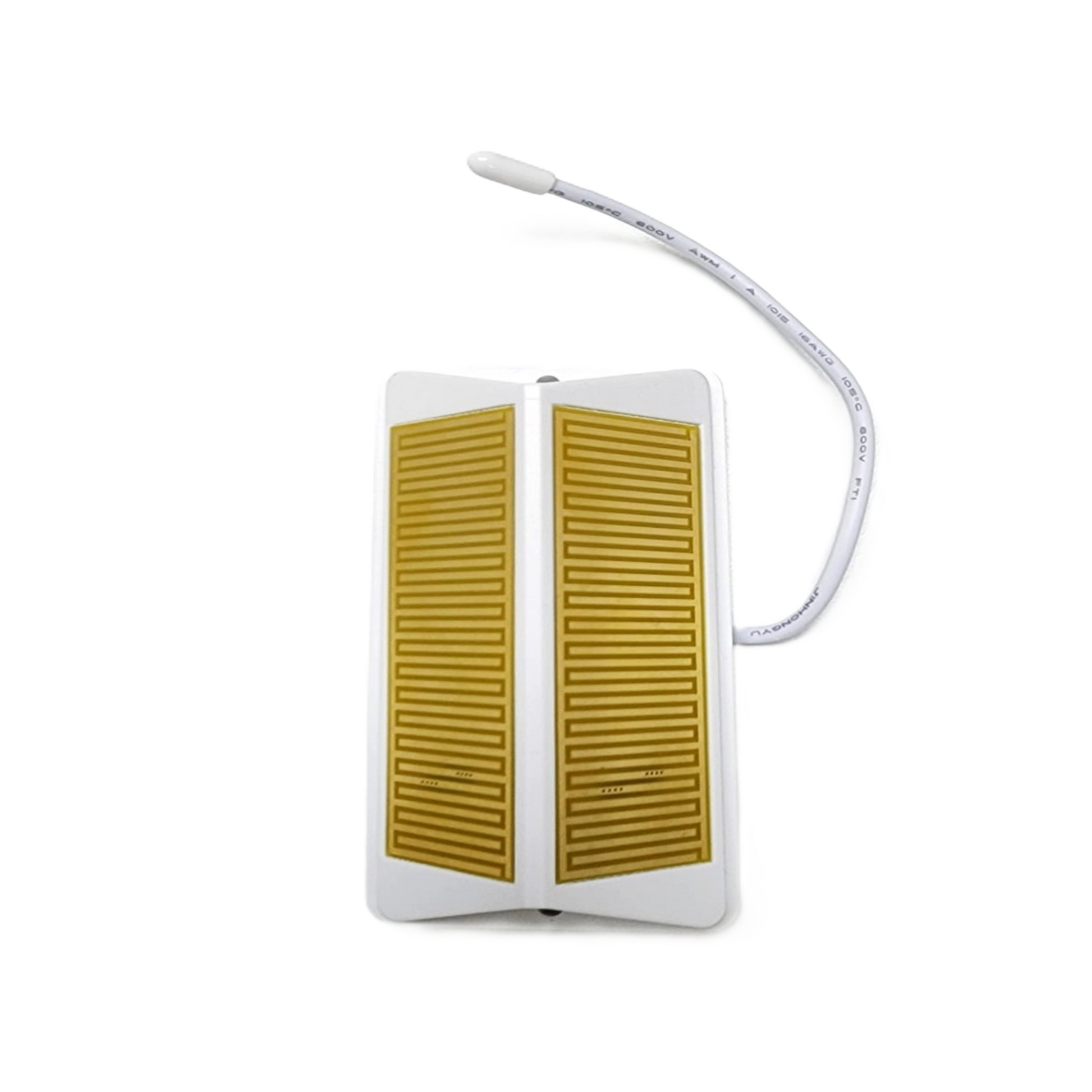

Standard Wireless Rain Sensor Features:

• Size: 100 x 50 x 35mm
• Voltage: DC5-24V
• Temperature: -20~+85°C
• Battery: 6LR61
• Anti UV radiation enclosure
• The rain sensor panel is designed with 45° angle which prevents rainwater from pooling on the sensor.

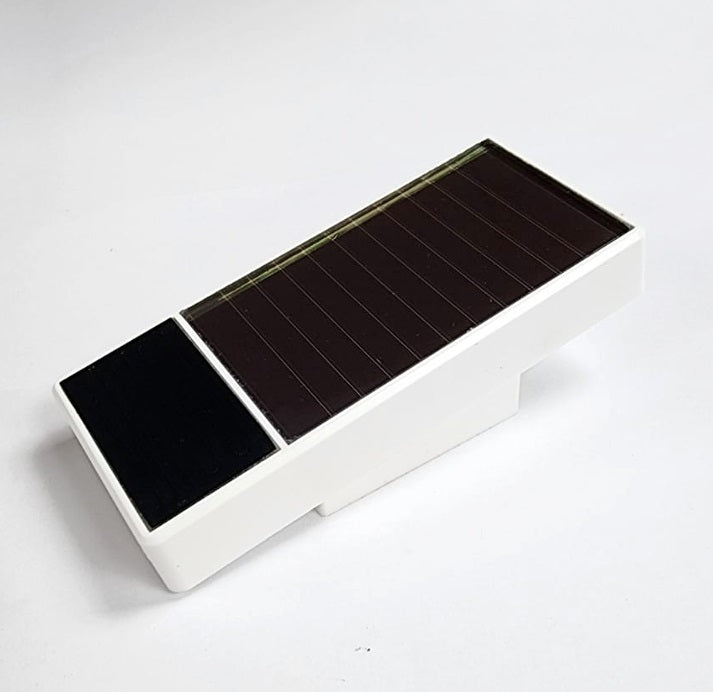

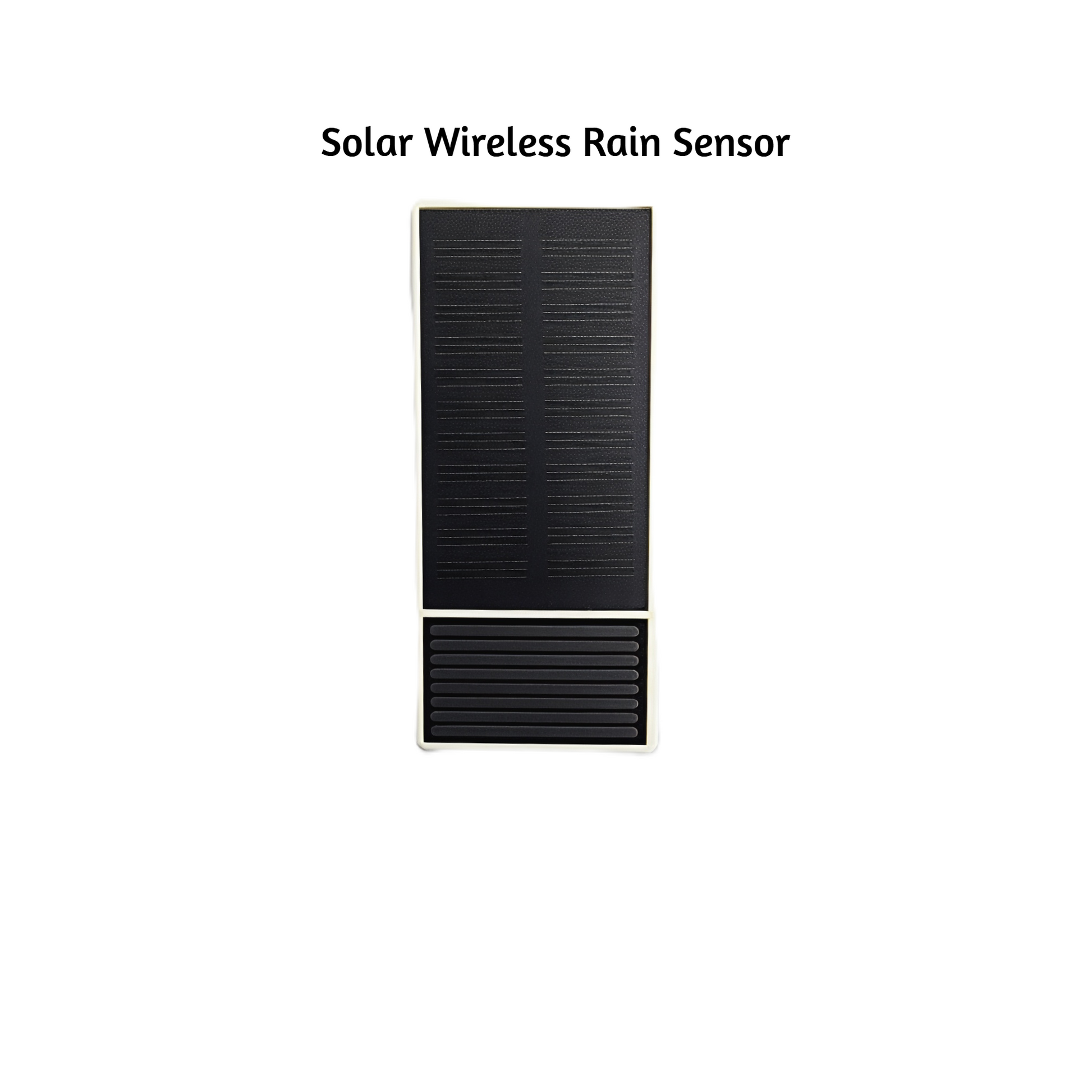

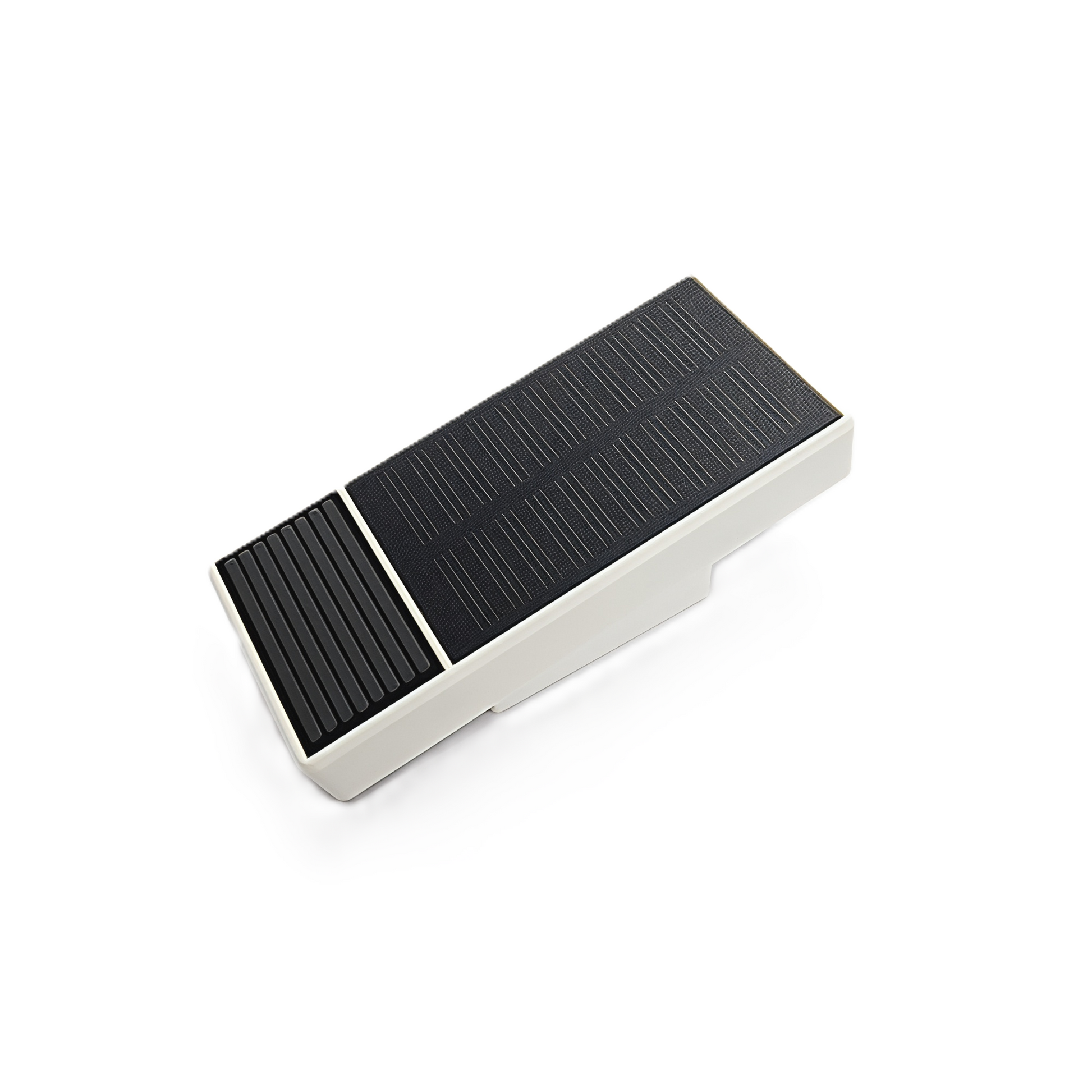

Solar Wireless Rain Sensor Features:

• Size: 99x44.5x14mm
• Weight: 0.1kg
• Working Voltage: 3V
• Maximum Effective Range: 80 meters outdoors
• Solar Panel Voltage: 3~7V
• Current Consumption: 200mA
• Battery Capacity: Less than 20 µA static current
• Temperature: -20°C to +75°C
• Solar-powered
• Automatically closes louvre roof when rain is detected to prevent water entry
