Villa Motorised Louvre Roof Pergola
Villa Motorised Louvre Roof Pergola
Couldn't load pickup availability

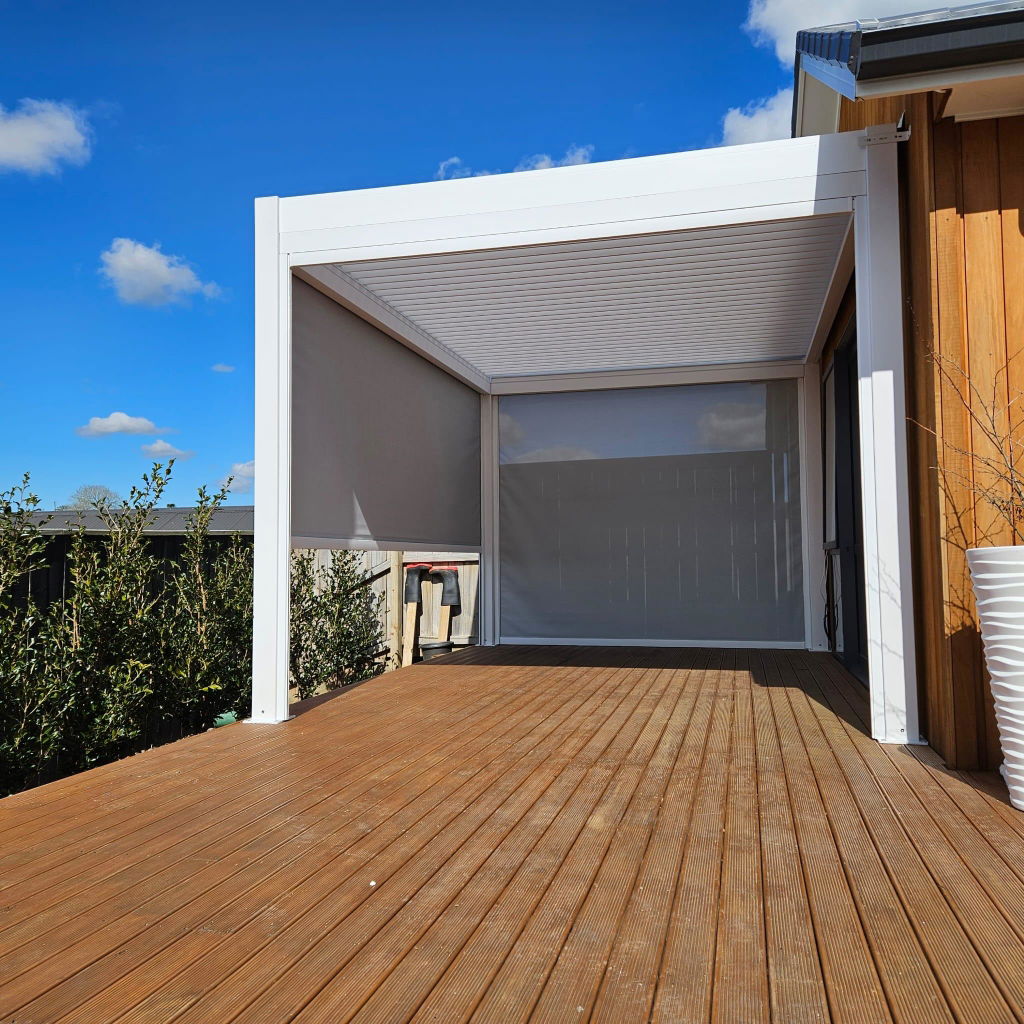

Create a comfortable outdoor living space with our Motorised Aluminium Louvre Roof Pergola. Designed to provide flexibility in changing weather conditions, this pergola allows you to adjust the louvre roof with the touch of a button, giving you control over sunlight, shade, and airflow throughout the day.

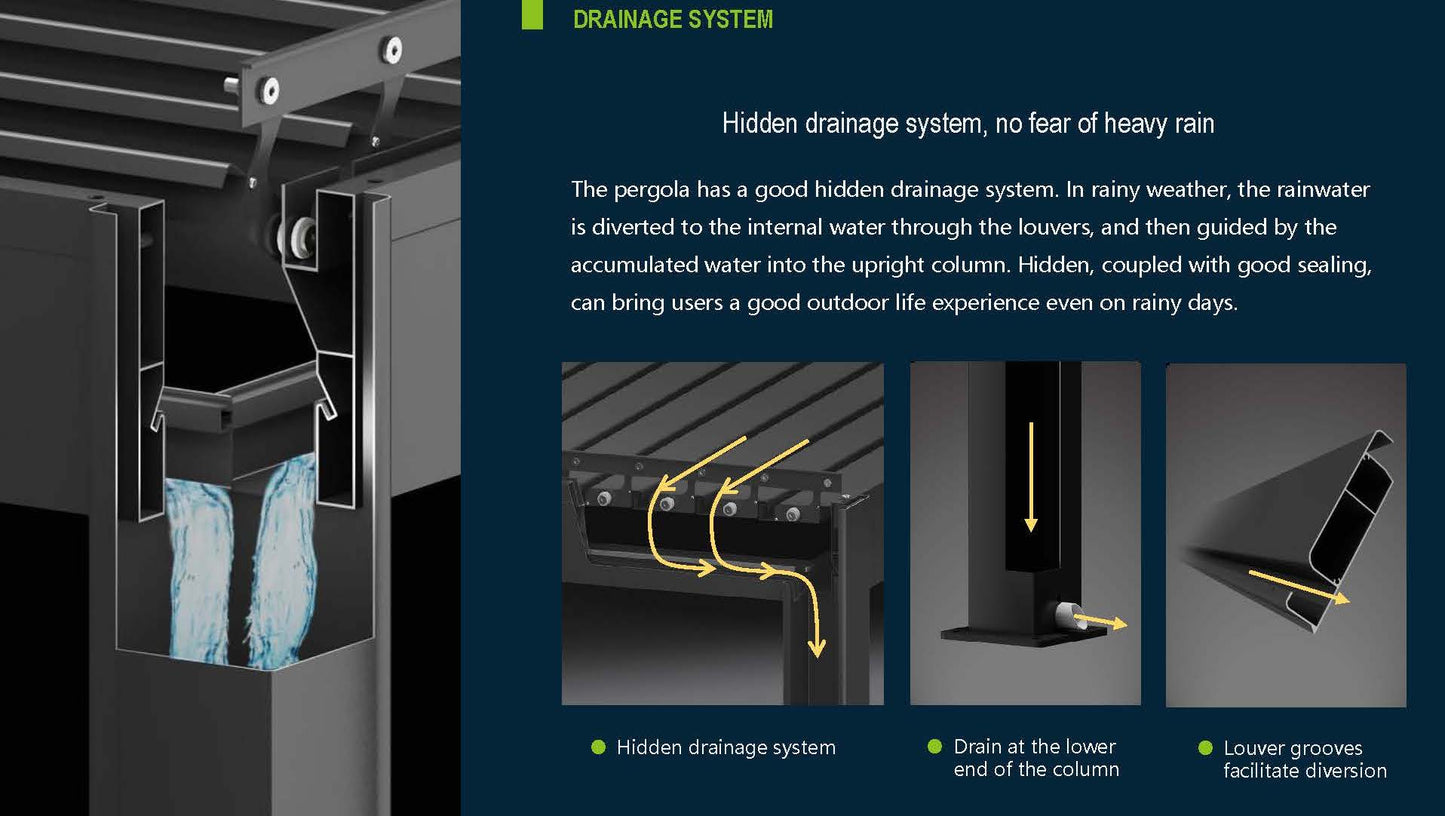

Featuring a modern aluminium structure, double-layer rotating louvre blades, hidden motor system, integrated guttering, and waterproof LED lighting, this pergola combines style and functionality to enhance your outdoor area.
Whether you are entertaining guests, relaxing with family, or creating a sheltered outdoor retreat, this motorised louvre pergola provides a stylish solution for enjoying your outdoor space throughout the year.

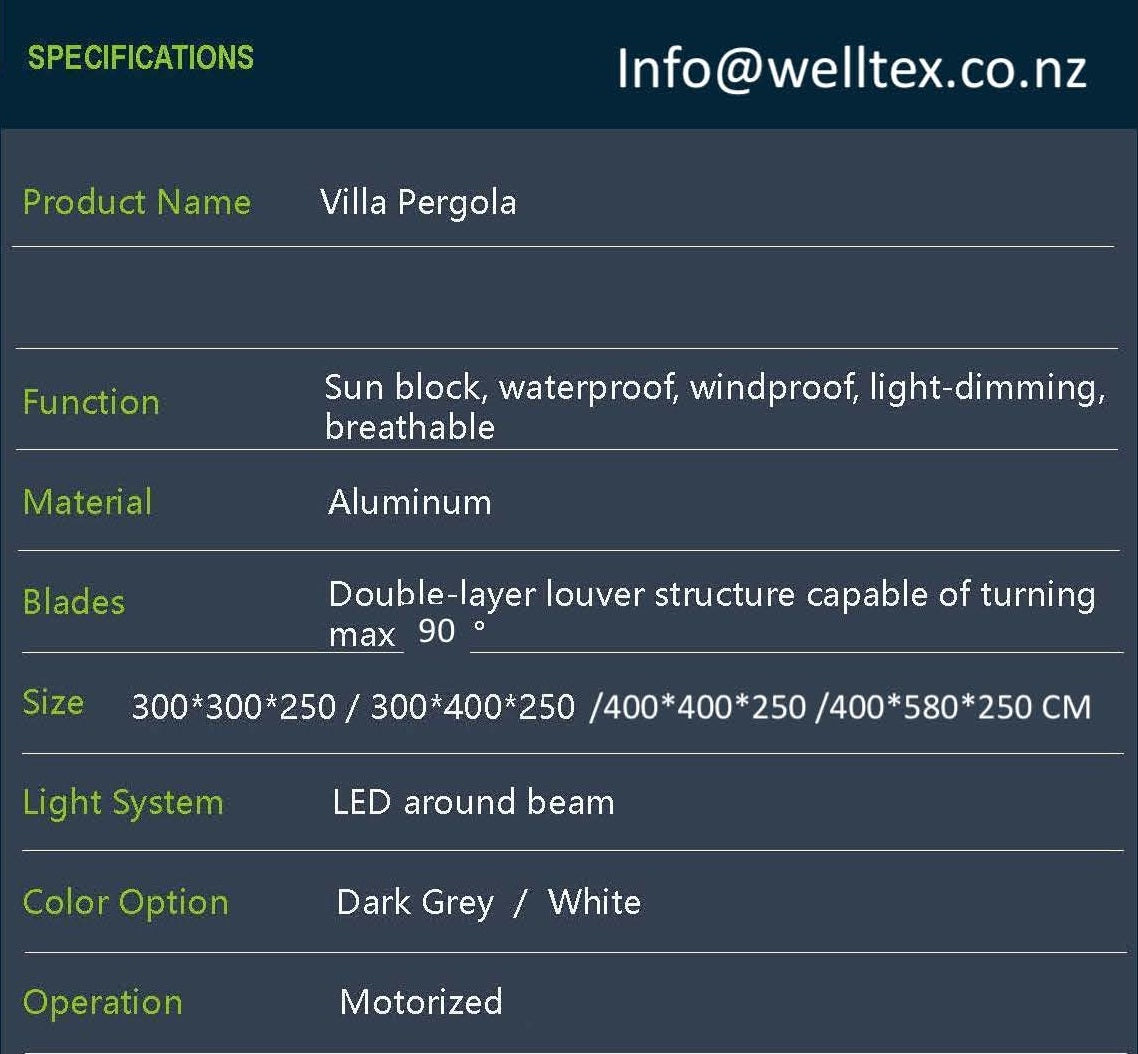

Features & Specifications
| Feature | Specification |
|---|---|
| Material | Aluminium Alloy 6063 T5 |
| Posts | 120 × 120 × 1.4mm |
| Main Beam | 170 × 47 × 1.2mm |
| Beams | 170 × 25 × 1.2mm |

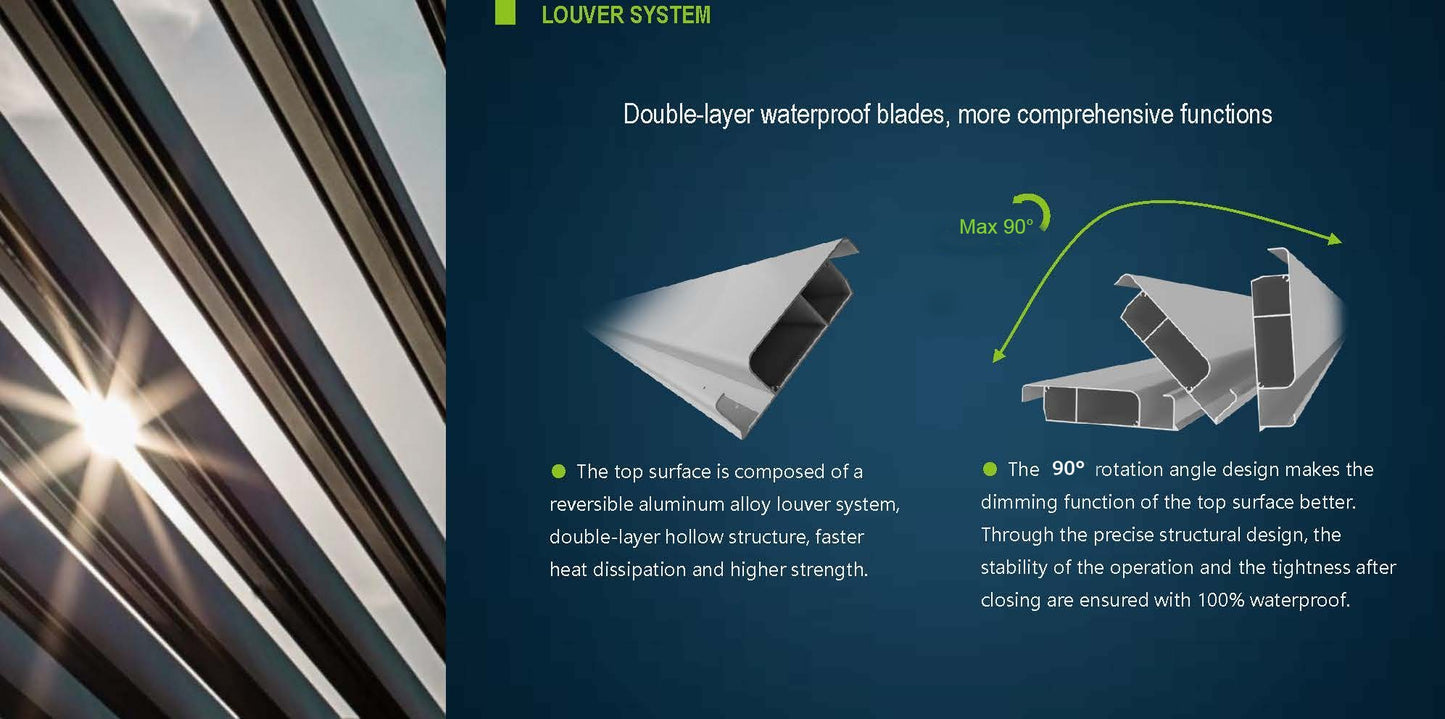

| Louvre Blades | 135 × 30 × 1.2mm (Double Layer) |
| Gutter | 58 × 66 × 1.4mm |
| Height | 270cm + 8cm clearance for louvre rotation |

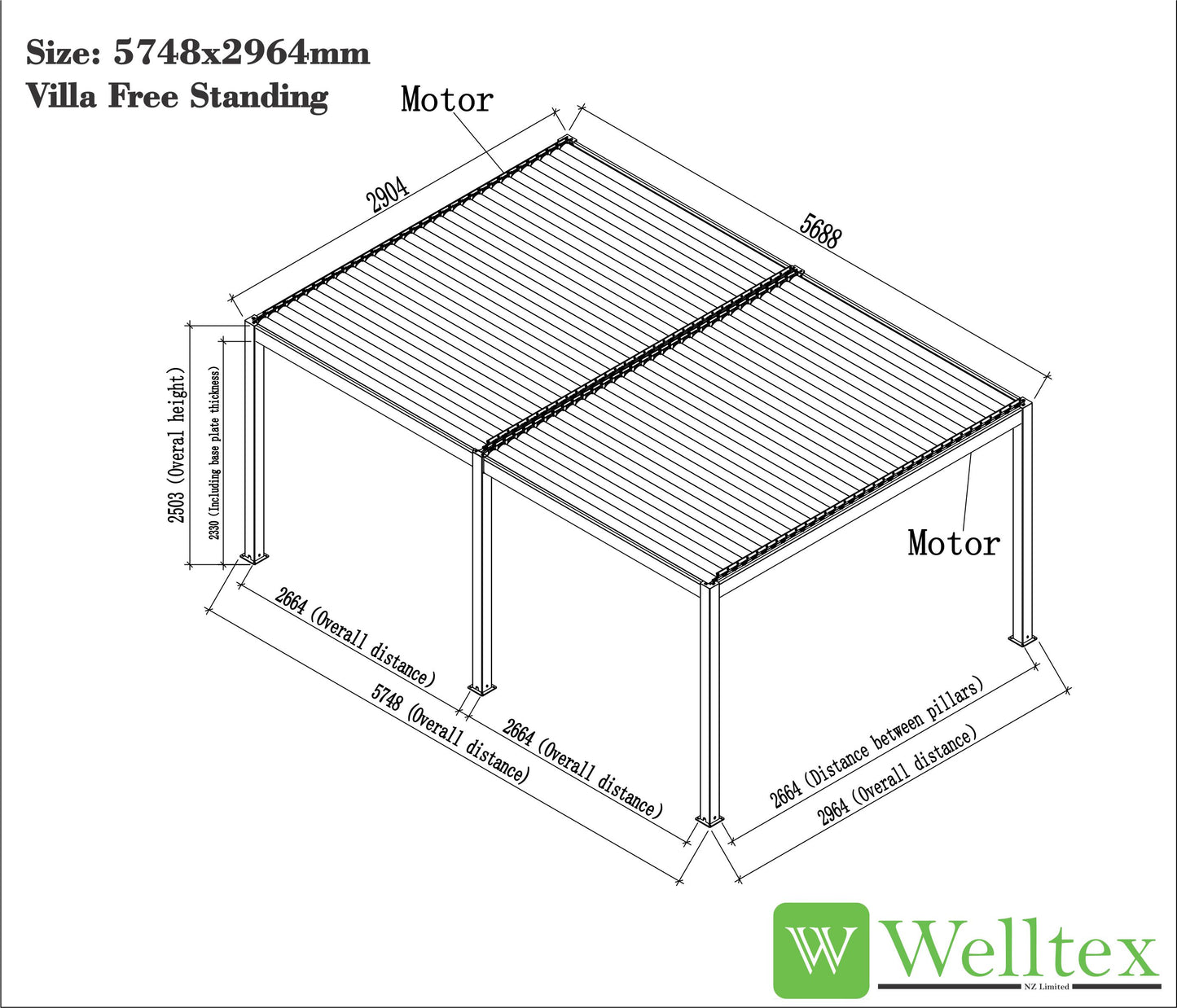

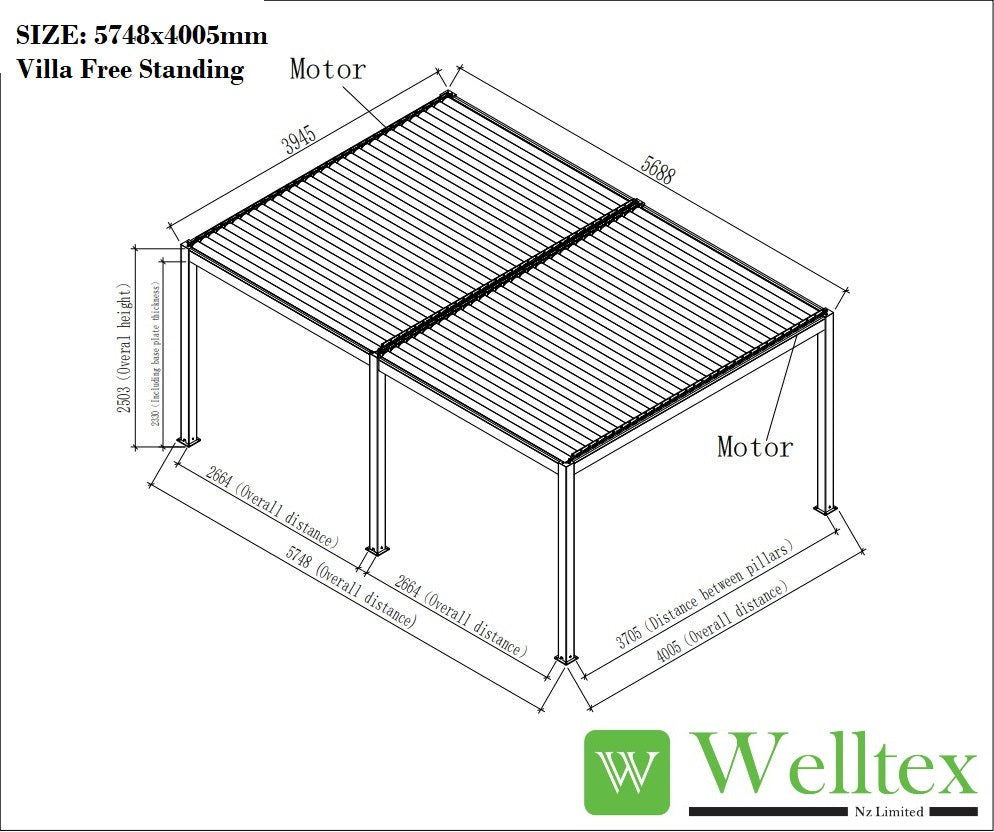

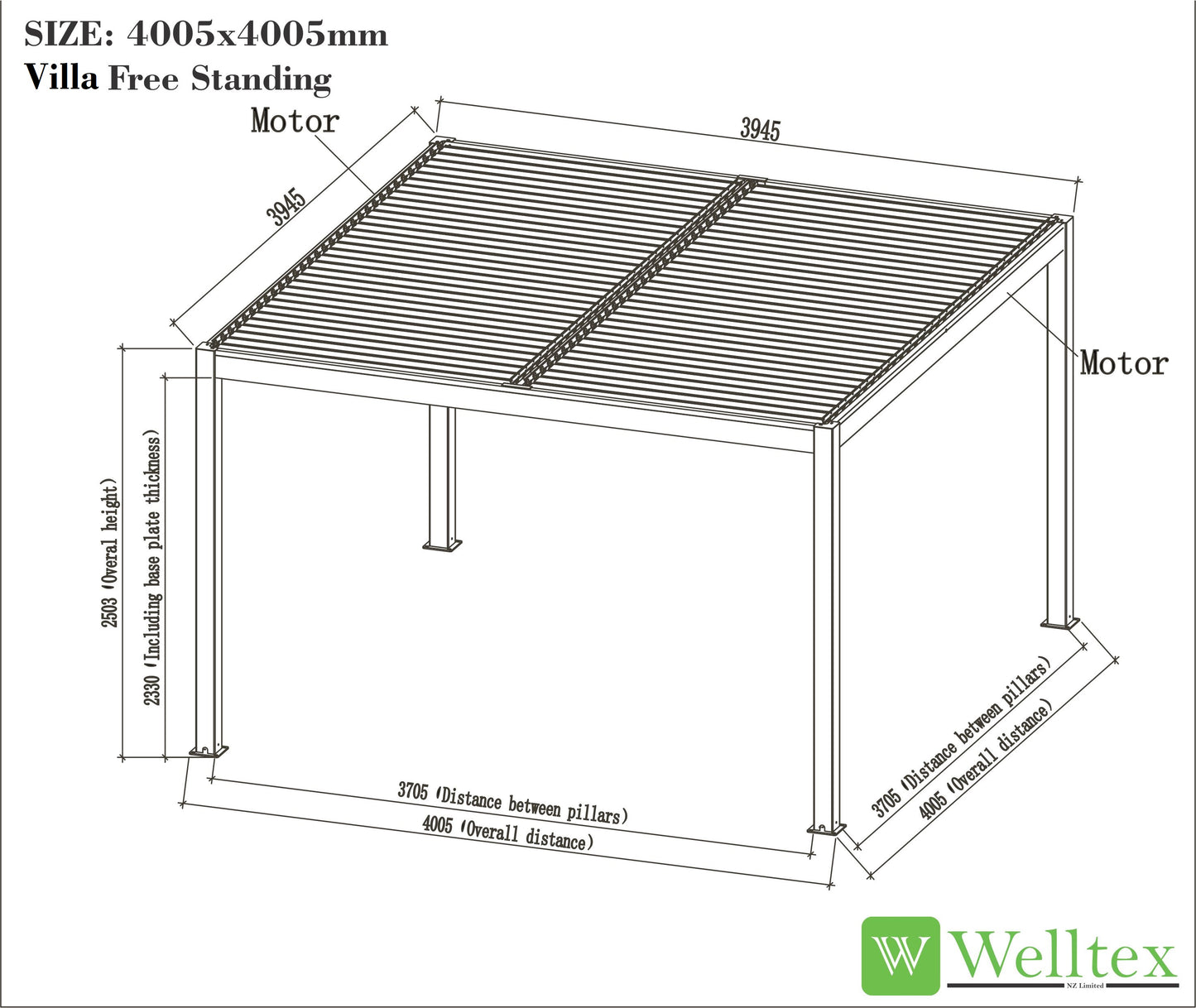

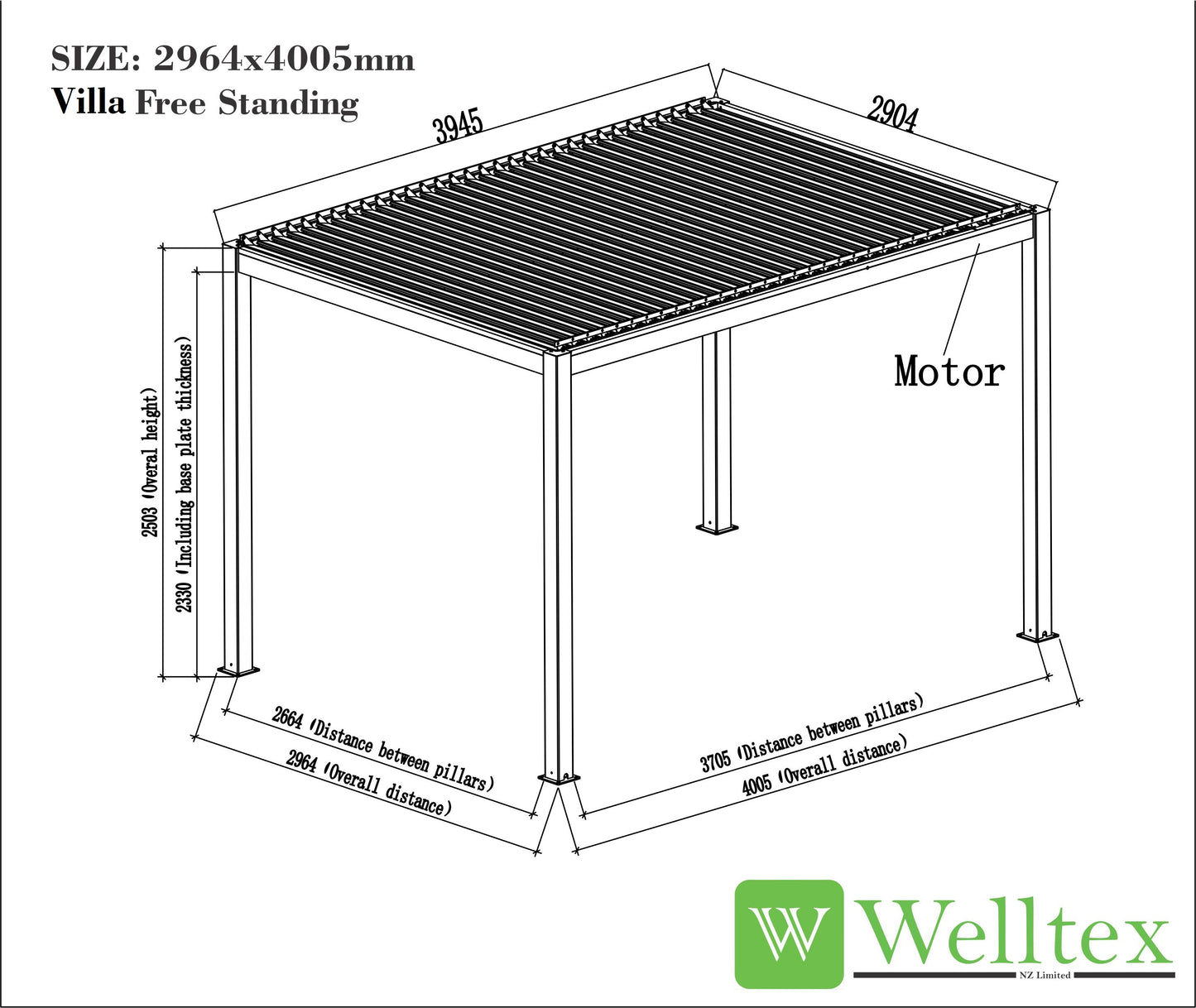

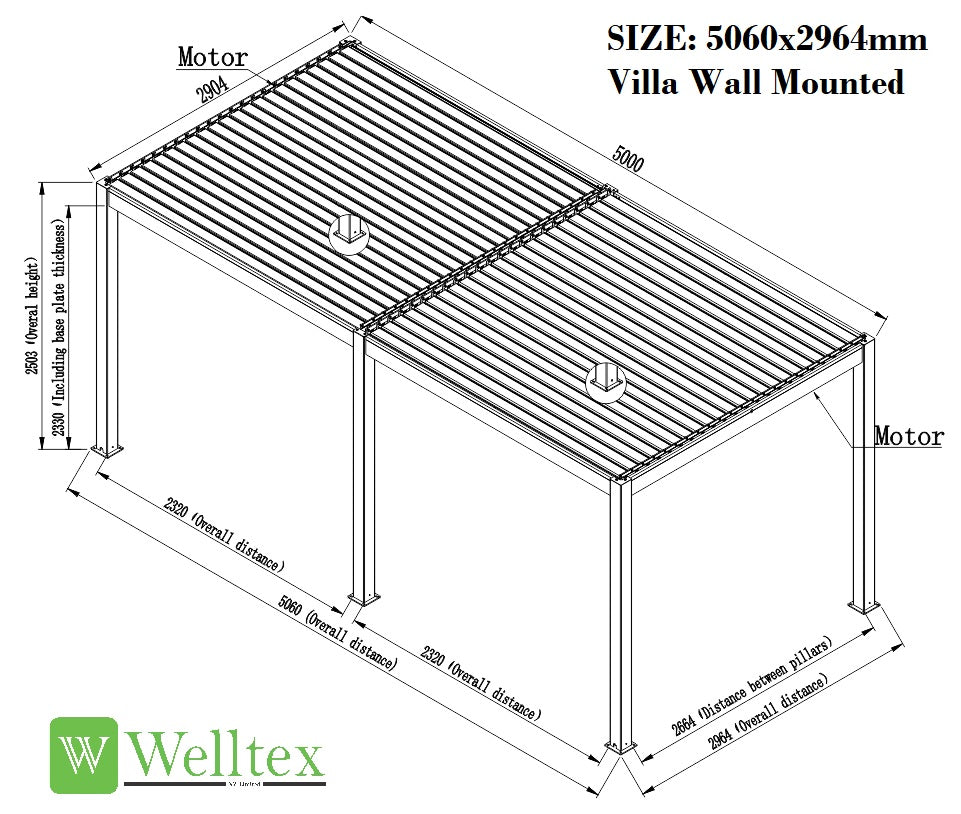

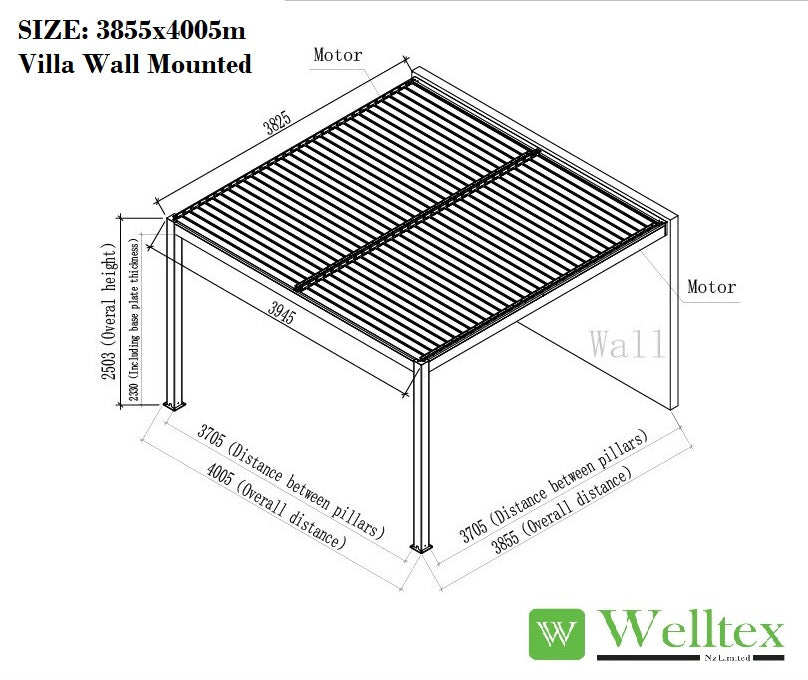

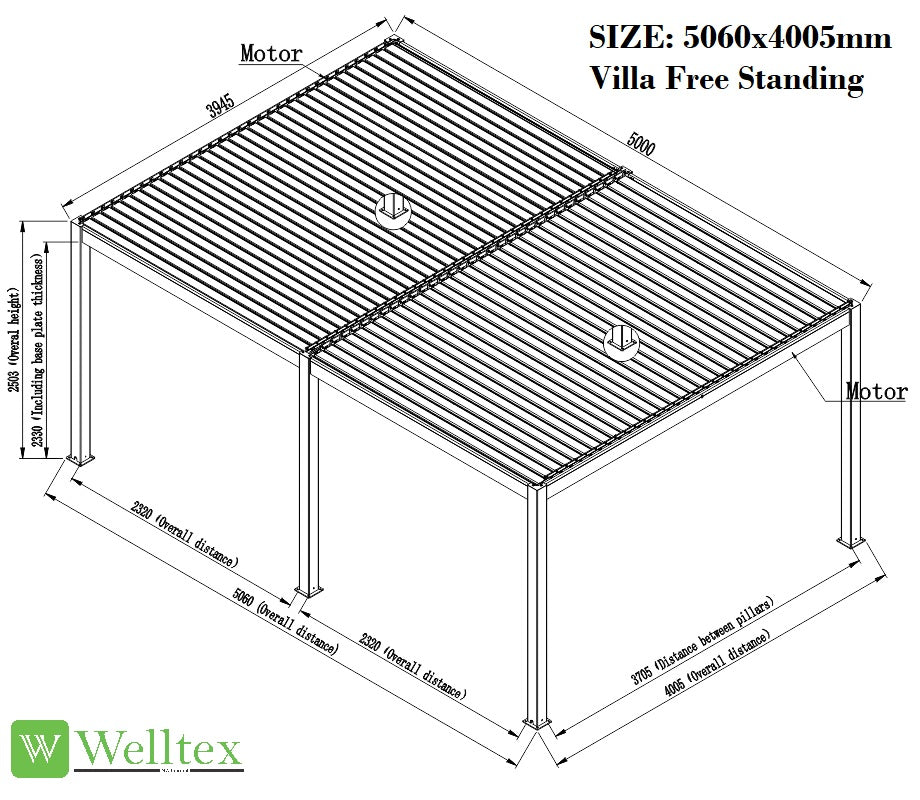

| Structure | Free-standing with 4–6 posts; double bay |
| Louvre Rotation | 90° |

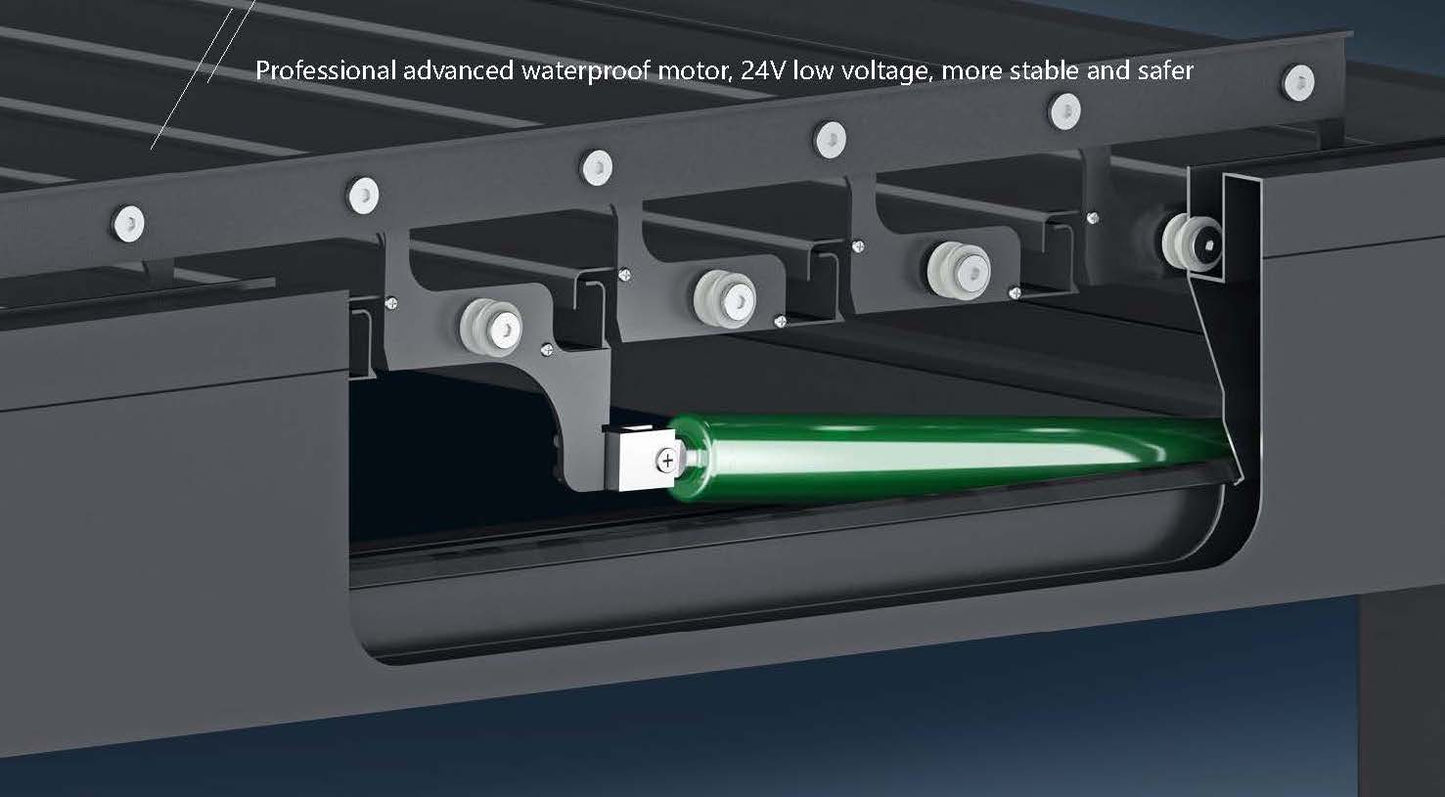

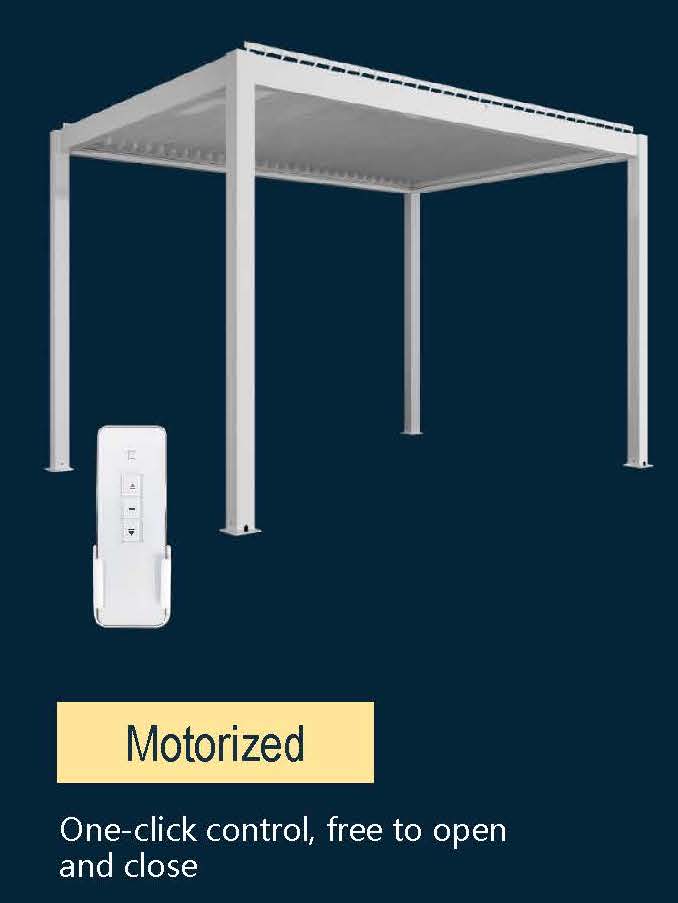

| Motor & Control | Hidden motor system with remote control |
| Lighting | Waterproof LED lighting around beams |

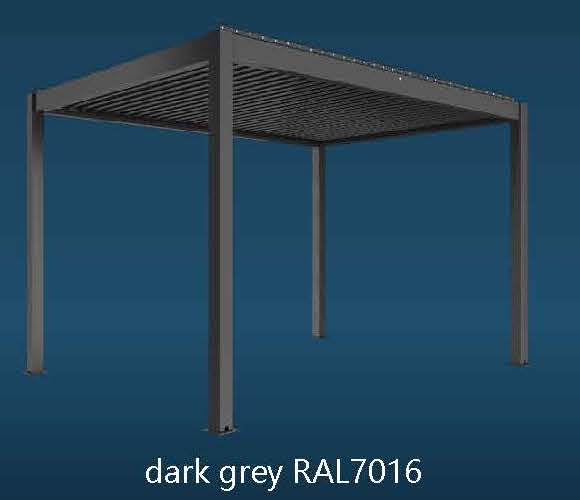

| Frame Colours | White (RAL 9016), Dark Grey (RAL 7016) |
| Wind Resistance | Up to 100km/h |
| Motor Wattage | AC 220V |
| LED Voltage | DC 24V |
| Assembly | DIY-friendly kitset with installation manual included |
Warranty
- Structural Warranty: 10 years
- Powder Coating Warranty: 3 years
- Motor Warranty: 2 years
- LED Lighting Warranty: 2 years
Warranty Exclusions
The Motorised Louvre Pergola kitset is designed as a non-permanent outdoor structure. Warranty does not cover changes, fading, deterioration, or damage caused by environmental conditions including heavy rain, strong winds, heat from BBQs or outdoor heaters.
Warranty does not cover damage caused by misuse, accidents, negligence, unauthorised modifications, or failure to follow installation instructions.
The warranty applies to domestic use only and excludes commercial applications.
Installation Requirements
Professional installation is recommended to ensure correct assembly and operation.
The pergola must be installed on a suitable and level substrate, including:
- Concrete footing with a minimum depth of 100mm, or
- A suitable structural timber deck
For safety and warranty purposes, no alterations or modifications should be made to the pergola system.
For installation guidance or further information, please contact us at info@welltex.co.nz.
